925075-6

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 4POS INLINE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

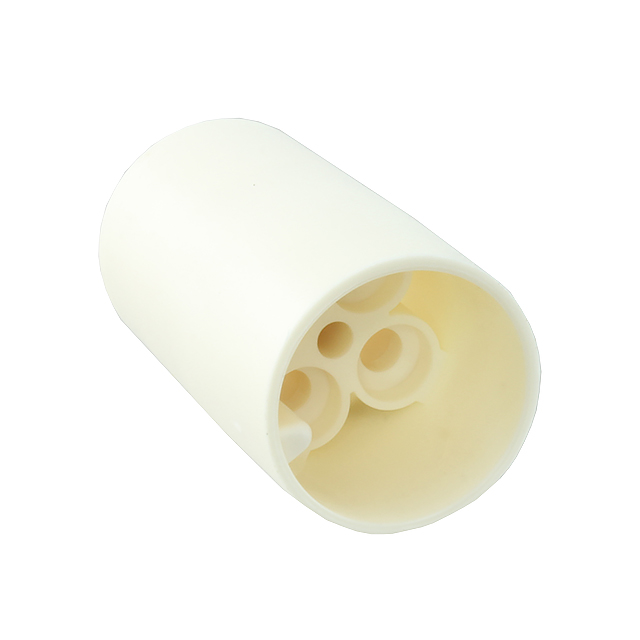

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Technical documentation and resources

Specification	925075-6	925075 Series

Connector Type	Receptacle Housing	Cap Housing, Receptacle Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Push-Pull	Push-Pull
Housing Color	Natural	Natural
Material Flammability Rating	UL94 V-2	UL94 V-0, UL94 V-2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shell Material	Polyamide (PA6), Nylon 6	Polyamide (PA66), Nylon 6/6, Polyamide (PA6), Nylon 6
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

Part	Note	Housing Color	Fastening Type	Shielding	Shell Material	Contact Shape	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Number of Positions	Type	Contact Type
TE Connectivity AMP Connectors 925075-7	Contacts Not Included	Natural	Push-Pull	Unshielded	Polyamide (PA66), Nylon 6/6	Circular	Keyed	Cap Housing	105 ░C	-55 °C	UL94 V-0	Free Hanging (In-Line)	4	For Male Pins	Crimp
TE Connectivity AMP Connectors 925075-6	Contacts Not Included	Natural	Push-Pull	Unshielded	Nylon 6, Polyamide (PA6)	Circular	Keyed	Receptacle Housing	105 ░C	-55 °C	UL94 V-2	Free Hanging (In-Line)	4	For Male Pins	Crimp
