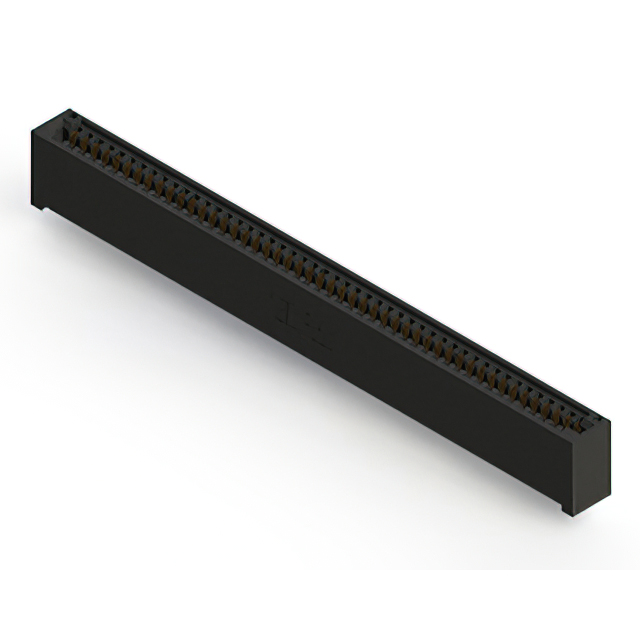

395-048-525-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 48POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-048-525-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 48POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-048-525-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-048 Series
...
| Part | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination Rows | Contact Finish | Card Type | Termination | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Material - Insulation | Number of Positions | Gender | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 2 | Gold | Non Specified - Dual Edge | Solder | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Board Edge Straddle Mount | Copper Alloy | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Wire Wrap | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Solder | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | ||||||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Wire Wrap | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Solder | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 2 | Gold | Non Specified - Dual Edge | Solder | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole Right Angle | Copper Alloy | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Solder | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Wire Wrap | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | ||||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Cantilever | 2 | Gold | Non Specified - Dual Edge | Wire Wrap | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Single | -40 °C | 105 ░C | Cantilever | 1 | Gold | Non Specified - Single Edge | Solder | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyester Thermoplastic | 48 | Female | Through Hole Right Angle | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 11.76 | |
Description
General part information
395-048 Series
48 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
