26151-80-03

Active

Orion Fans

CORD 16AWG NEMA5-15P - IEC320 8'

Search across all available documentation for this part.

Active

Orion Fans

CORD 16AWG NEMA5-15P - IEC320 8'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	26151-80-03	26151 Series

1st Connector	NEMA 5-15P	NEMA 5-15P
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Gray	Gray
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length	-	10 ft
Length	-	3.05 m
Length [x]	2.44 m	2.44 m
Length [x]	8 ft	8 ft
Number of Conductors	3	3
Operating Temperature	60 °C	60 °C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VAC	125 VAC
Wire Gauge	16 AWG	16 AWG

CRD 16AWG NEMA5-15P - 320C13 10'

Part	Current Rating (Amps)	Color	Cord Type	Operating Temperature	Approved Countries	Approval Agency Marking	Shielding	1st Connector	Length	Length	Number of Conductors	Voltage Rating	Style	Wire Gauge	Length [x]	Length [x]
Orion Fans 26151-100-03	13 A	Gray	SJT	60 °C	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	Unshielded	NEMA 5-15P	10 ft	3.05 m	3	125 VAC	Female Sockets, Male Pins	16 AWG
Orion Fans 26151-80-03	13 A	Gray	SJT	60 °C	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	Unshielded	NEMA 5-15P			3	125 VAC	Female Sockets, Male Pins	16 AWG	2.44 m	8 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 10.97

General part information

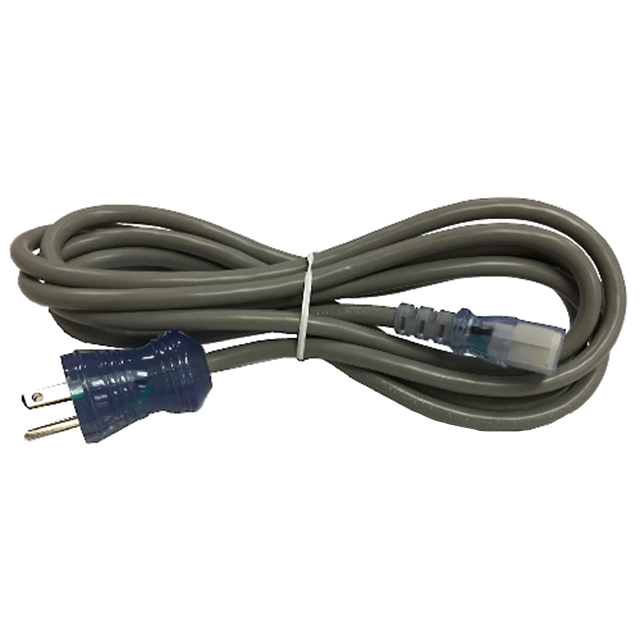

8.00' (2.44m) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT

Technical documentation and resources
