745-072-540-106
ActiveEDAC Inc.

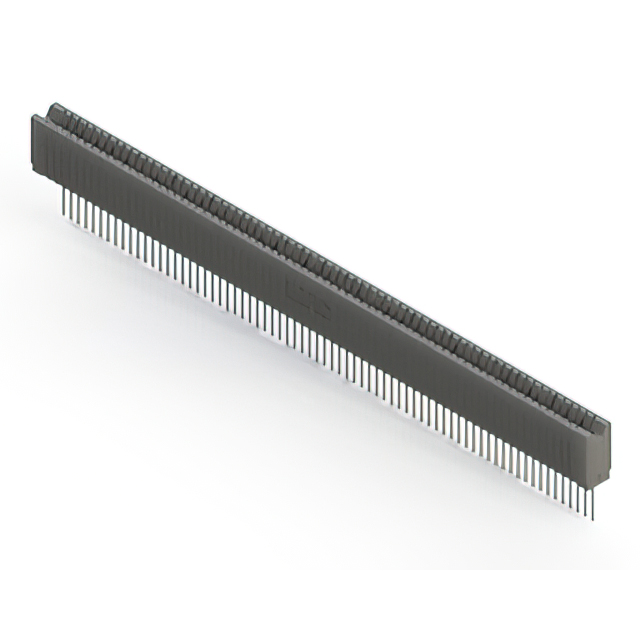

CONN EDGE SINGLE FML 72POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
745-072-540-106
ActiveEDAC Inc.
CONN EDGE SINGLE FML 72POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 745-072-540-106 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 72 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Press-Fit |
| Termination Rows | 1 |
745-072 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Contact Type | Read Out | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination Rows | Mounting Type | Material - Insulation | Termination | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish | Color | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit Wire Wrap | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 2 | 2 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | Gold | Black | 36 | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 2 | 2 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | Gold | Black | 36 | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Single | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1 | 1 | Through Hole | Polyester Thermoplastic | Press-Fit Wire Wrap | 2.54 mm | 0.1 in | 72 | 72 | Gold | Black | |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Cantilever | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 2 | 2 | Through Hole | Polyester Thermoplastic | Press-Fit | 2.54 mm | 0.1 in | 72 | Gold | Black | 36 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 17.53 | |
Description
General part information
745-072 Series
72 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
