KX15-20KLDLE

Active

JAE Electronics

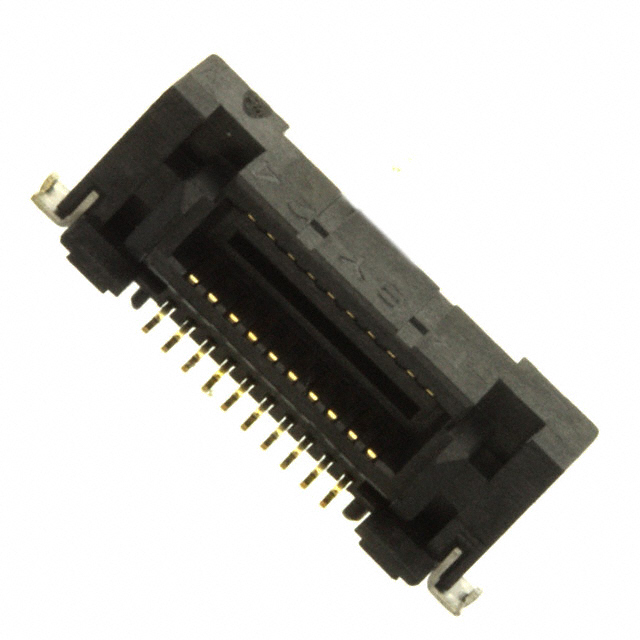

BOARD STACKING CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, PLUG, LEAD FREE

Search across all available documentation for this part.

Active

JAE Electronics

BOARD STACKING CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, PLUG, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-20KLDLE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.226 in
Height Above Board	5.74 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Positions	Mounting Type	Features	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
JAE Electronics KX15-20K2D-E1000E	20	Surface Mount	Board Guide Solder Retention	0.8 mm	0.031 in	Gold	3.75 mm	0.148 in	2	4 Áin	0.1 Ám	4 mm 7 mm 10 mm 13 mm 16 mm
JAE Electronics KX15-20KLDLE	20	Surface Mount Right Angle	Board Guide Solder Retention	0.8 mm	0.031 in	Gold	5.74 mm	0.226 in	2	4 Áin	0.1 Ám
JAE Electronics KX15-20KLDL-E1000E	20	Surface Mount Right Angle	Board Guide Solder Retention	0.8 mm	0.031 in	Gold	5.74 mm	0.226 in	2	4 Áin	0.1 Ám
JAE Electronics KX15-20K4D-E1000E	20	Surface Mount	Board Guide Solder Retention	0.8 mm	0.031 in	Gold	5.74 mm	0.226 in	2	4 Áin	0.1 Ám	6 mm 9 mm 12 mm 15 mm 18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	106	$ 4.77

General part information

20 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
