Q-0902Y0008006i

Active

Amphenol Custom Cable

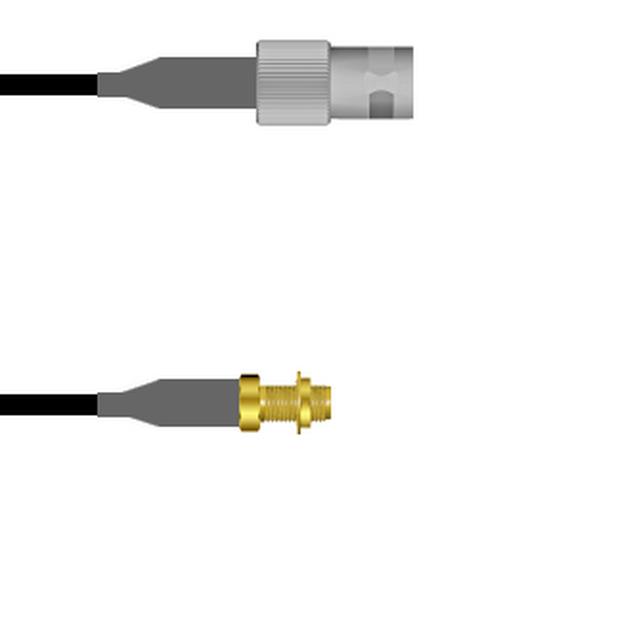

CBL ASSY BNC-SMA JACK-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0902Y0008006i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0902Y0008006i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0902Y0 Series

Part	Frequency - Max [Max]	Features	2nd Connector	Overall Impedance	1st Connector	Style	Color	Cable Type	Length [x]	Length [x]	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector Mounting Type	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-0902Y0008.25M	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58	9.843 "	250 mm	Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount
Amphenol Custom Cable Q-0902Y0008006i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	152.4 mm	6 in
Amphenol Custom Cable Q-0902Y0008036i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	91.44 cm	36 in
Amphenol Custom Cable Q-0902Y0008108i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-0902Y00080.5M	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	50 cm	19.69 "
Amphenol Custom Cable Q-0902Y0008018i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58		457.2 mm	Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount				457.2 mm
Amphenol Custom Cable Q-0902Y0008024i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	609.6 mm	24 "
Amphenol Custom Cable Q-0902Y0008009i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	228.6 mm	9 "
Amphenol Custom Cable Q-0902Y0008012i	4 GHz	Shielded	SMA Jack	50 Ohms	BNC Jack	BNC to SMA	Black	RG-58			Female	Female	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	304.8 mm	12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.99
		25	$ 70.58
		50	$ 69.17
		100	$ 67.76
		250	$ 66.35

Description

General part information

Q-0902Y0 Series

Cable Assembly Coaxial BNC to SMA RG-58 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
