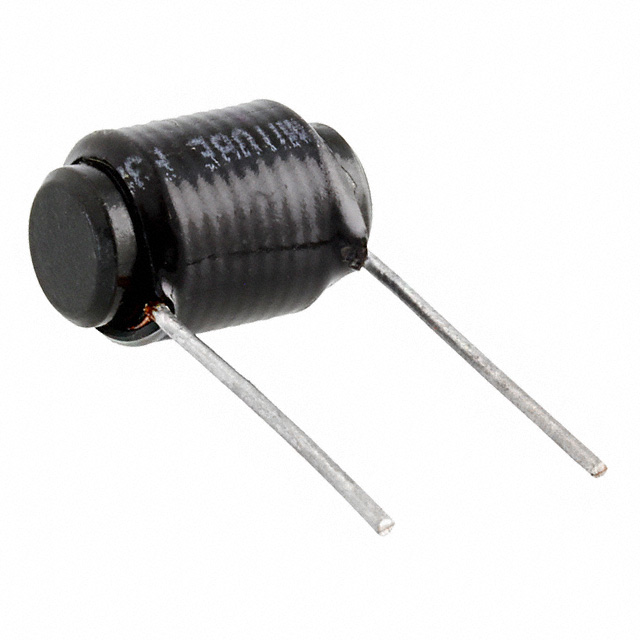

5501-RC
ObsoleteBourns Inc.
FIXED IND 5UH 10A 13 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5501-RC |
|---|---|
| Current Rating (Amps) | 10 A |
| DC Resistance (DCR) | 13 mOhm |
| Inductance | 5 µH |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Horizontal Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 16 mm |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [z] | 22.35 mm |
| Size / Dimension [z] | 0.88 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5501 Series
5 µH Unshielded Drum Core, Wirewound Inductor 10 A 13mOhm Max Radial, Horizontal Cylinder
