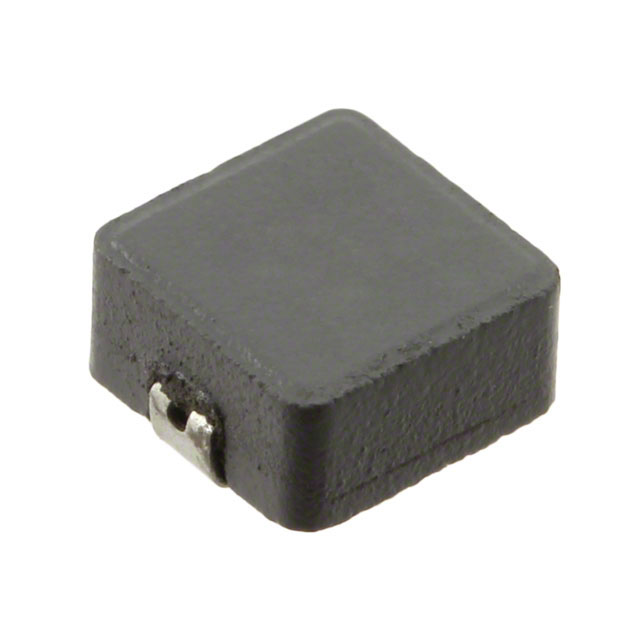

SRP5030T-1R0M
ActiveBourns Inc.
INDUCTOR, 1.0UH, 20%, 7A, POWER
Deep-Dive with AI
Search across all available documentation for this part.
SRP5030T-1R0M
ActiveBourns Inc.
INDUCTOR, 1.0UH, 20%, 7A, POWER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP5030T-1R0M |
|---|---|
| Current - Saturation (Isat) | 11 A |
| Current Rating (Amps) | 7 A |
| DC Resistance (DCR) [Max] | 14 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 5.7 mm |
| Size / Dimension [x] | 0.224 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 10 | $ 1.15 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.65 | |||
| Tape & Reel (TR) | 2000 | $ 0.65 | ||
| 4000 | $ 0.63 | |||
| 6000 | $ 0.61 | |||
| 10000 | $ 0.59 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.55 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.99 | |||
Description
General part information
SRP5030T Series
1 µH Shielded Drum Core, Wirewound Inductor 7 A 14mOhm Max Nonstandard
