STEVAL-IHM040V1
ObsoleteBLDC/PMSM DRIVER DEMONSTRATION BOARD BASED ON STM32 AND THE SLLIMM NANO™
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-IHM040V1
ObsoleteBLDC/PMSM DRIVER DEMONSTRATION BOARD BASED ON STM32 AND THE SLLIMM NANO™
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IHM040V1 |
|---|---|
| Embedded | MCU, 32-Bit |
| Embedded | True |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (BLDC, PMSM) |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STM32F100, STGIPN3H60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-IHM040V1 Series

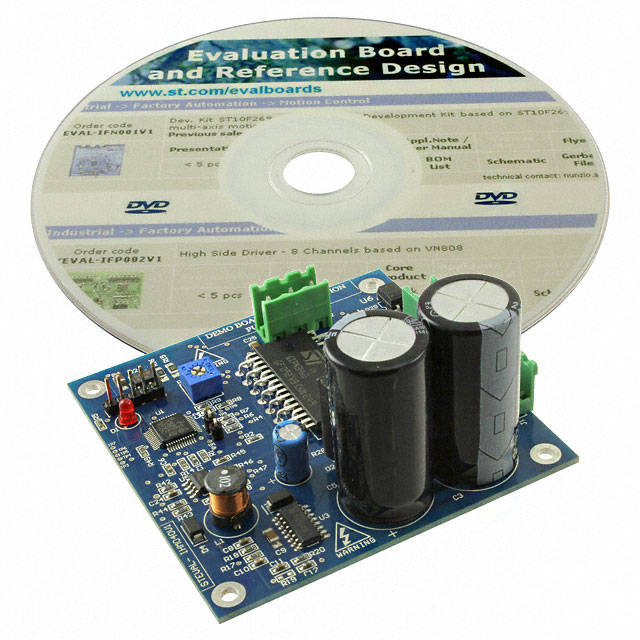

The STEVAL-IHM040V1 is a 3-phase permanent magnet brushless motor driver designed to drive a motor using either the six step or field oriented control (FOC) commutation technique. The board can operate from an AC mains of either 115 or 230 VACnominal at 50/60 Hz, or from a DC input voltage between 150 and 350 VDC. The board can supply a continuous output current of 0.5 ARMSto the motor.
The circuit consists of three main blocks. The first is the digital control block, which uses the STM32F100C8T6 microcontroller to implement the control algorithms and to generate the control signals for the power stage. The main outputs of the control block are the signals for the power stage.
The second block is the power stage, a 3-phase inverter bridge implemented using the STGIPN3H60 SLLIMM-nano intelligent power module. The SLLIMM includes the 6 IGBTs, gate drivers and level shift required to interface the logic signals from the digital control to the motor terminals. The SLLIMM also provides a hardware overcurrent shutdown and an op-amp used to scale and bias the current sensing.
