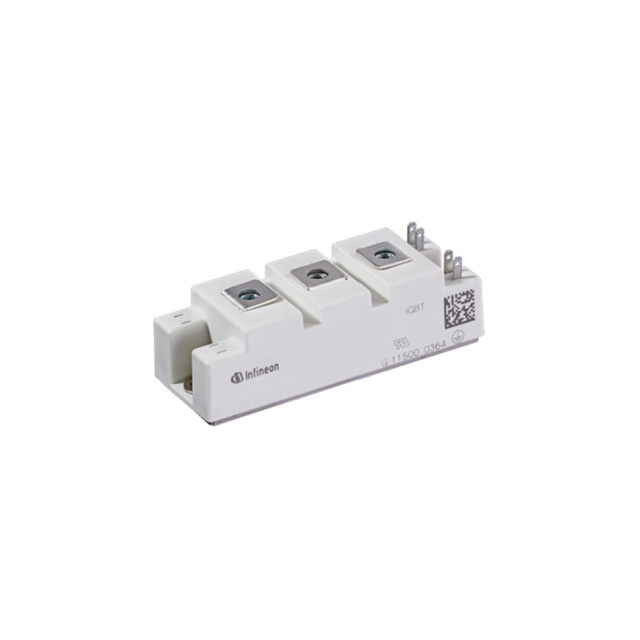

DF150R12RT4HOSA1

Obsolete

Infineon Technologies

IGBT MOD 1200V 150A 790W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MOD 1200V 150A 790W

Technical Specifications

Parameters and characteristics for this part

Specification	DF150R12RT4HOSA1

Configuration	Single Chopper
Current - Collector (Ic) (Max) [Max]	150 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	9.3 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Package / Case	Module
Power - Max [Max]	790 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	NTC Thermistor	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Mounting Type	IGBT Type	Supplier Device Package	Input	Configuration	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]
Infineon Technologies DF150R12RT4HOSA1		1 mA	1200 V	2.15 V	Module	Chassis Mount	Trench Field Stop	Module	Standard	Single Chopper	9.3 nF	150 A	790 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Trench Field Stop Single Chopper 1200 V 150 A 790 W Chassis Mount Module

Technical documentation and resources

No documents available
