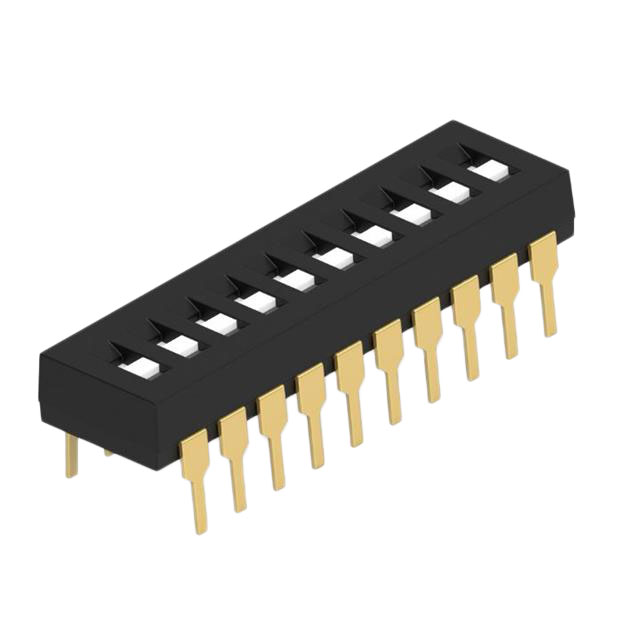

1-1825002-8

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Mechanical Life	Length	Length	Electrical Life	Height Above Board [z]	Height Above Board [z]	Features	Current Rating (Amps)	Termination Style	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Washable	Voltage Rating	Contact Material	Mounting Type	Number of Positions	Body Material	Circuit	Contact Finish
TE Connectivity ALCOSWITCH Switches 1-1825002-8	0.1 in	Full	2.54 mm	Slide (Standard)	1000 Cycles	1.078 "	27.38 mm	1000 Cycles	0.189 in	4.8 mm	Tape Seal	25 mA	PC Pin	Flush, Recessed	-30 ░C	85 °C		24 VDC	Copper Alloy	Through Hole	10	Polyphenylene Sulfide (PPS)	SPST	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3000	$ 1.25

General part information

Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
