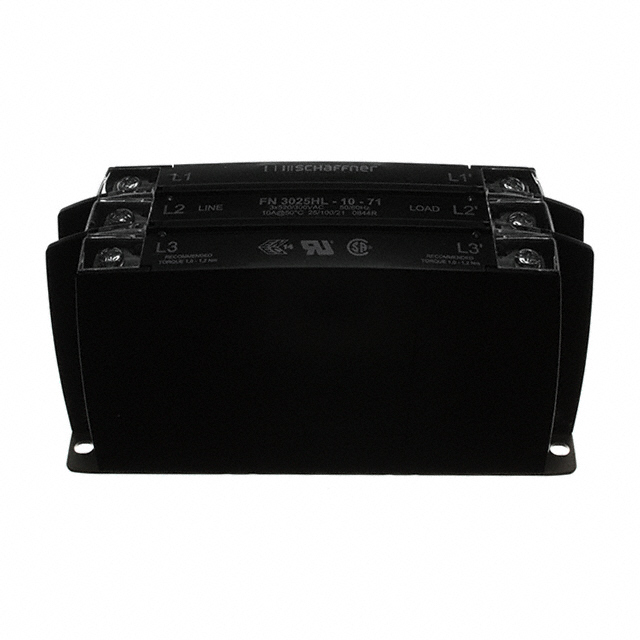

FN3025HL-10-71

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 10A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 10A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN3025HL-10-71

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	10 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Part	Approval Agency	Configuration	Filter Type	Mounting Type	Operating Temperature [custom]	Applications	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Voltage - Rated AC (Phase to Phase)	Current
TE Connectivity Raychem Cable Protection FN3025HL-10-71	CSA ENEC UR	Single Stage	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	300 V	60 Hz	DC	Terminal Block	520 V	10 A
TE Connectivity Raychem Cable Protection FN3025HL-50-72	CSA ENEC UR	Single Stage	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	300 V	60 Hz	DC	Terminal Block	520 V	50 A
TE Connectivity Raychem Cable Protection FN3025HL-20-71	CSA ENEC UR	Single Stage	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	300 V	60 Hz	DC	Terminal Block	520 V	20 A
TE Connectivity Raychem Cable Protection FN3025HL-30-71	CSA ENEC UR	Single Stage	Three Phase (Delta)	Chassis Mount	-25 °C 100 °C	General Purpose	300 V	60 Hz	DC	Terminal Block	520 V	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 10 A DC ~ 60Hz Single Stage Terminal Block
