SSF-LXH100MYD
ActiveLumex Opto/Components Inc.
LED CBI 5MM YELLOW RA PC MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSF-LXH100MYD
ActiveLumex Opto/Components Inc.
LED CBI 5MM YELLOW RA PC MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSF-LXH100MYD | SSF-LXH100 Series |
|---|---|---|
| Color | Yellow | Green, Red, Yellow, Green Diffused, Blue |
| Configuration | Single | Single |
| Current | - | 25 mA |
| Current | - | 25 mA |
| Current | - | 12 mA |
| Lens Size | T-1 3/4 | T-1 3/4 |
| Lens Size | 5 mm | 5 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Type | Tinted, Diffused | Tinted, Diffused, White |
| Millicandela Rating | 30 mcd | 6 - 100 mcd |
| Millicandela Rating | - | 20 mcd |
| Millicandela Rating | - | 6 mcd |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Viewing Angle | 60 ° | 60 ° |
| Voltage Rating | 2.1 V | 1.7 - 5 V |
| Wavelength - Peak | 585 nm | 565 - 695 nm |
| Wavelength - Peak | - | 565 - 700 nm |
SSF-LXH100 Series
LED CBI 5MM GRN RA PC MNT
| Part | Lens Size | Lens Size | Color | Millicandela Rating | Lens Type | Viewing Angle | Wavelength - Peak | Lens Style | Mounting Type | Configuration | Voltage Rating | Current [custom] | Current [custom] | Wavelength - Peak [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSF-LXH100LGD-01 | T-1 3/4 | 5 mm | Green | 30 mcd | Diffused, Tinted | 60 ° | 565 nm | Round with Domed Top | Through Hole, Right Angle | Single | |||||||
Lumex Opto/Components Inc. SSF-LXH100HD-01 | T-1 3/4 | 5 mm | Red | Diffused, Tinted | Round with Domed Top | Through Hole, Right Angle | Single | 2 V | |||||||||
Lumex Opto/Components Inc. SSF-LXH100MLID | T-1 3/4 | 5 mm | Red | 30 mcd | Diffused, Tinted | 60 ° | 635 nm | Round with Domed Top | Through Hole, Right Angle | Single | 2 V | ||||||
Lumex Opto/Components Inc. SSF-LXH100LID | T-1 3/4 | 5 mm | Red | 40 mcd | Diffused, Tinted | 60 ° | 635 nm | Round with Domed Top | Through Hole, Right Angle | Single | 2 V | ||||||
Lumex Opto/Components Inc. SSF-LXH100LGD | T-1 3/4 | 5 mm | Green | 30 mcd | Diffused, Tinted | 60 ° | 565 nm | Round with Domed Top | Through Hole, Right Angle | Single | |||||||
Lumex Opto/Components Inc. SSF-LXH100YD | T-1 3/4 | 5 mm | Yellow | 30 mcd | Diffused, Tinted | 60 ° | 585 nm | Round with Domed Top | Through Hole, Right Angle | Single | 2.1 V | ||||||
Lumex Opto/Components Inc. SSF-LXH100HGW | T-1 3/4 | 5 mm | Green, Red | Diffused, White | 60 ° | Round with Domed Top | Through Hole, Right Angle | Single | 2 V, 2.2 V | 25 mA | 25 mA | 565 nm, 700 nm | 20 mcd | 6 mcd | |||
Lumex Opto/Components Inc. SSF-LXH100MGD | T-1 3/4 | 5 mm | Green | 20 mcd | Diffused, Tinted | 60 ° | 565 nm | Round with Domed Top | Through Hole, Right Angle | Single | |||||||
Lumex Opto/Components Inc. SSF-LXH100MID | T-1 3/4 | 5 mm | Red | 30 mcd | Diffused, Tinted | 60 ° | 635 nm | Round with Domed Top | Through Hole, Right Angle | Single | 2 V | ||||||
Lumex Opto/Components Inc. SSF-LXH100YD-01 | T-1 3/4 | 5 mm | Yellow | 30 mcd | Diffused, Tinted | 60 ° | 585 nm | Round with Domed Top | Through Hole, Right Angle | Single | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
Description
General part information
SSF-LXH100 Series

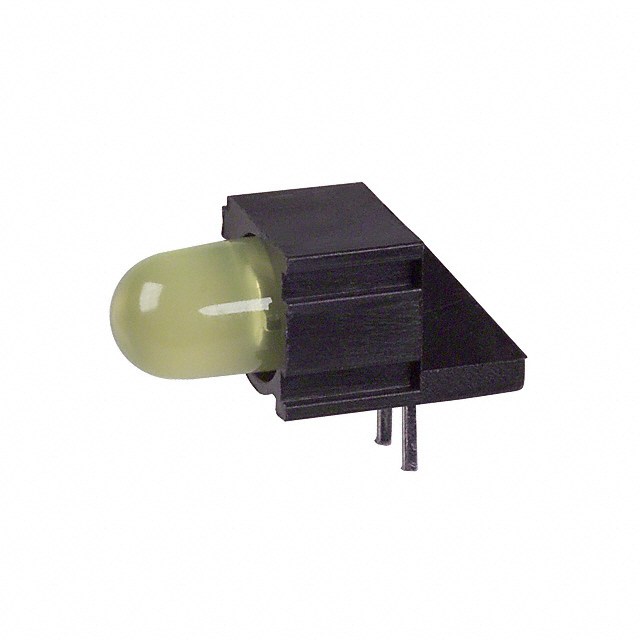

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
