SSF-LXH100LID

Active

Lumex Opto/Components Inc.

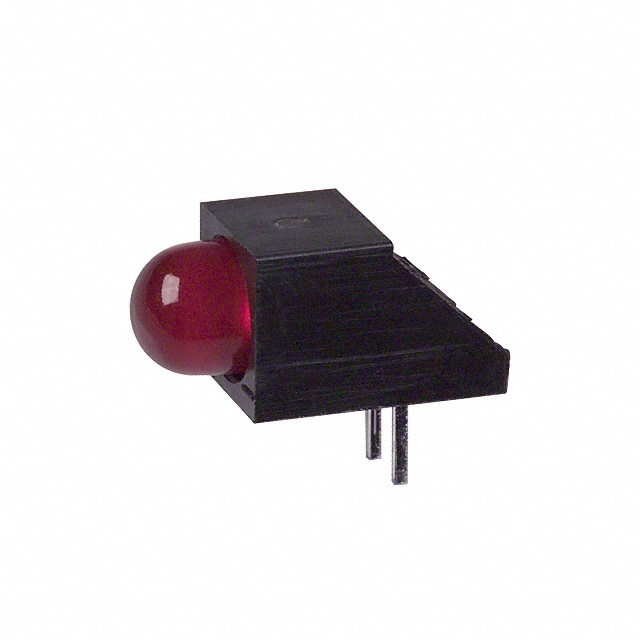

LED CBI 5MM RED RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH100LID

Active

Lumex Opto/Components Inc.

LED CBI 5MM RED RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.60
		10	$ 0.39
		100	$ 0.26
		1000	$ 0.24

Description

General part information

SSF-LXH100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH100LID	SSF-LXH100 Series

Color	Red	Green, Red, Yellow, Green Diffused, Blue
Configuration	Single	Single
Current	-	25 mA
Current	-	25 mA
Current	-	12 mA
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, White
Millicandela Rating	40 mcd	6 - 100 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	6 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2 V	1.7 - 5 V
Wavelength - Peak	635 nm	565 - 695 nm
Wavelength - Peak	-	565 - 700 nm

SSF-LXH100 Series

LED CBI 5MM GRN RA PC MNT

Part	Lens Size	Lens Size	Color	Millicandela Rating	Lens Type	Viewing Angle	Wavelength - Peak	Lens Style	Mounting Type	Configuration	Voltage Rating	Current [custom]	Current [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSF-LXH100LGD-01	T-1 3/4	5 mm	Green	30 mcd	Diffused, Tinted	60 °	565 nm	Round with Domed Top	Through Hole, Right Angle	Single
Lumex Opto/Components Inc. SSF-LXH100HD-01	T-1 3/4	5 mm	Red		Diffused, Tinted			Round with Domed Top	Through Hole, Right Angle	Single	2 V
Lumex Opto/Components Inc. SSF-LXH100MLID	T-1 3/4	5 mm	Red	30 mcd	Diffused, Tinted	60 °	635 nm	Round with Domed Top	Through Hole, Right Angle	Single	2 V
Lumex Opto/Components Inc. SSF-LXH100LID	T-1 3/4	5 mm	Red	40 mcd	Diffused, Tinted	60 °	635 nm	Round with Domed Top	Through Hole, Right Angle	Single	2 V
Lumex Opto/Components Inc. SSF-LXH100LGD	T-1 3/4	5 mm	Green	30 mcd	Diffused, Tinted	60 °	565 nm	Round with Domed Top	Through Hole, Right Angle	Single
Lumex Opto/Components Inc. SSF-LXH100YD	T-1 3/4	5 mm	Yellow	30 mcd	Diffused, Tinted	60 °	585 nm	Round with Domed Top	Through Hole, Right Angle	Single	2.1 V
Lumex Opto/Components Inc. SSF-LXH100HGW	T-1 3/4	5 mm	Green, Red		Diffused, White	60 °		Round with Domed Top	Through Hole, Right Angle	Single	2 V, 2.2 V	25 mA	25 mA	565 nm, 700 nm	20 mcd	6 mcd
Lumex Opto/Components Inc. SSF-LXH100MGD	T-1 3/4	5 mm	Green	20 mcd	Diffused, Tinted	60 °	565 nm	Round with Domed Top	Through Hole, Right Angle	Single
Lumex Opto/Components Inc. SSF-LXH100MID	T-1 3/4	5 mm	Red	30 mcd	Diffused, Tinted	60 °	635 nm	Round with Domed Top	Through Hole, Right Angle	Single	2 V
Lumex Opto/Components Inc. SSF-LXH100YD-01	T-1 3/4	5 mm	Yellow	30 mcd	Diffused, Tinted	60 °	585 nm	Round with Domed Top	Through Hole, Right Angle	Single	2.1 V
