MIXA20WB1200TED

Active

IXYS

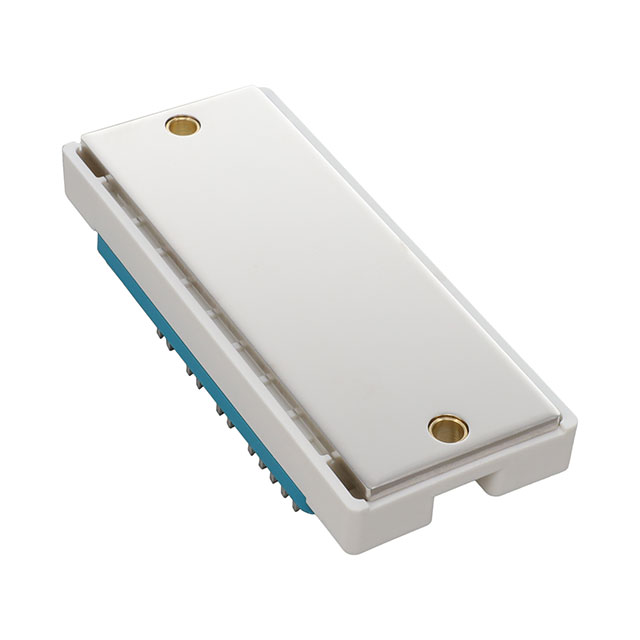

IGBT MODULE 1200V 28A 100W E2

Search across all available documentation for this part.

Active

IXYS

IGBT MODULE 1200V 28A 100W E2

Technical Specifications

Parameters and characteristics for this part

Specification	MIXA20WB1200TED

Configuration	Brake, Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	28 A
Current - Collector Cutoff (Max)	1.5 mA
IGBT Type	PT
Input	Three Phase Bridge Rectifier
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	E2
Power - Max [Max]	100 W
Supplier Device Package	E2
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	IGBT Type	Input	Mounting Type	Power - Max [Max]	Supplier Device Package	Package / Case	Vce(on) (Max) @ Vge, Ic	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max)	Operating Temperature [Min]	Operating Temperature [Max]	NTC Thermistor	Current - Collector (Ic) (Max) [Max]
IXYS MIXA20WB1200TED	PT	Three Phase Bridge Rectifier	Chassis Mount	100 W	E2	E2	2.1 V	Brake Three Phase Inverter	1200 V	1.5 mA	-40 °C	125 ¯C		28 A
IXYS MIXA20WB1200TML	PT	Three Phase Bridge Rectifier	Chassis Mount	100 W	MiniPack2	MiniPack2	2.1 V	Brake Three Phase Inverter	1200 V		-40 °C	125 ¯C		28 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 56.59

General part information

IGBT Module PT Three Phase Inverter with Brake 1200 V 28 A 100 W Chassis Mount E2
