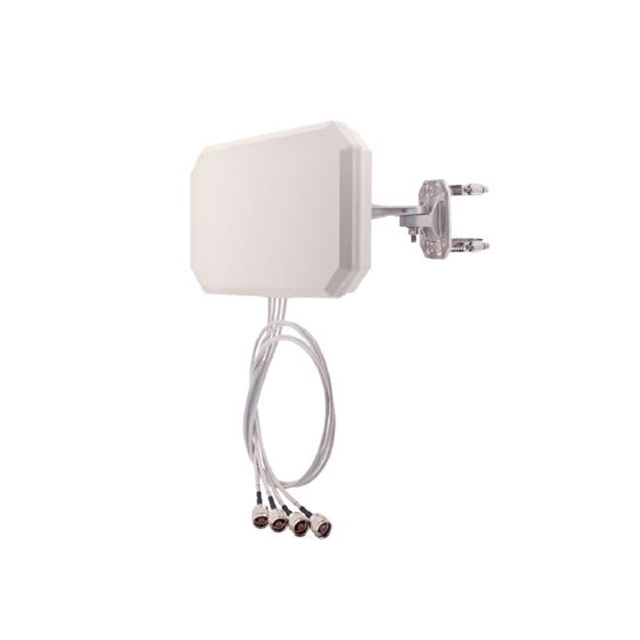

PDQ244910-91NM
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ FLAT PNL
Deep-Dive with AI
Search across all available documentation for this part.
PDQ244910-91NM
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ FLAT PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQ244910-91NM |
|---|---|
| Antenna Type | Flat Panel |
| Applications | Wi-Fi |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.95 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 10.8 dB |
| Height (Max) [Max] | 1.614 in |
| Height (Max) [Max] | 41 mm |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| Termination | N Type Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 161.42 | |
Description
General part information
PDQ244910 Series
RF ANTENNA Wi-Fi Flat Panel N Type Male Bracket Mount
Documents
Technical documentation and resources
No documents available
