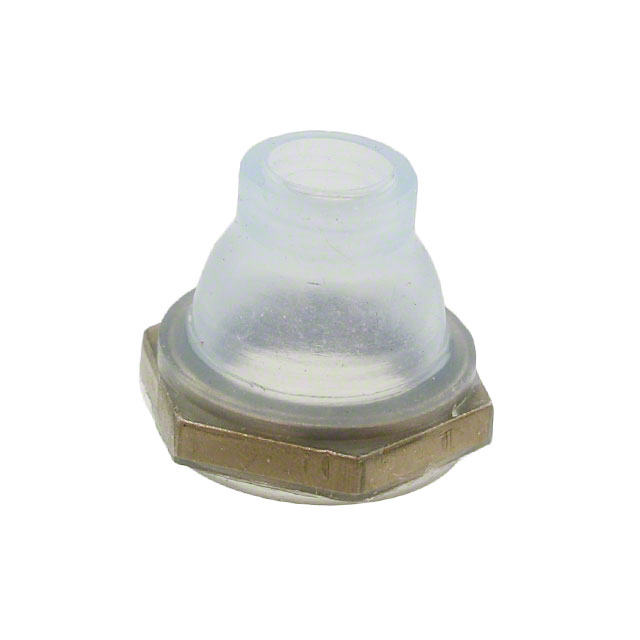

N3030B 4

Active

APM HEXSEAL

PUSHBUTTON HALF BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON HALF BOOT CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON HALF BOOT CLEAR

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	N3030B 4	N3030 Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter	-	10.72 mm
Actuator Diameter [diameter]	0.25 in	0.25 - 0.422 in
Color	Clear	Yellow, Gray, Red, Clear, Green
Features	-	Shielded
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	0.547 in	0.547 in
Size / Dimension [z]	13.89 mm	13.89 mm
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B
Type	Pushbutton, Half Boot	Pushbutton, Full Boot, Pushbutton, Half Boot

PUSHBUTTON FULL BOOT YELLOW

Part	Type	For Use With/Related Products	Thread Size	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Ingress Protection	Mounting Feature	Material	Size / Dimension [z]	Size / Dimension [z]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Diameter	Features
APM HEXSEAL N3030 65	Pushbutton, Full Boot	Multiple Series	15/32-32 NS-2B	0.422 in	10.72 mm	IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Yellow	204 °C	-70 °C
APM HEXSEAL N3030 2	Pushbutton, Full Boot	Multiple Series	15/32-32 NS-2B	0.422 in	10.72 mm	IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Gray	204 °C	-70 °C
APM HEXSEAL N3030 44	Pushbutton, Full Boot	Multiple Series	15/32-32 NS-2B	0.422 in	10.72 mm	IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Red	204 °C	-70 °C
APM HEXSEAL N3030B 4	Pushbutton, Half Boot	Multiple Series	15/32-32 NS-2B	0.25 in		IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Clear	204 °C	-70 °C	6.35 mm
APM HEXSEAL N3030 RFI 2	Pushbutton, Full Boot	Multiple Series	15/32-32 NS-2B	0.422 in	10.72 mm	IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Gray	204 °C	-70 °C		Shielded
APM HEXSEAL N3030 45	Pushbutton, Full Boot	Multiple Series	15/32-32 NS-2B	0.422 in	10.72 mm	IP66/IP68	Front of Panel	Silicone Rubber	0.547 in	13.89 mm	Green	204 °C	-70 °C
