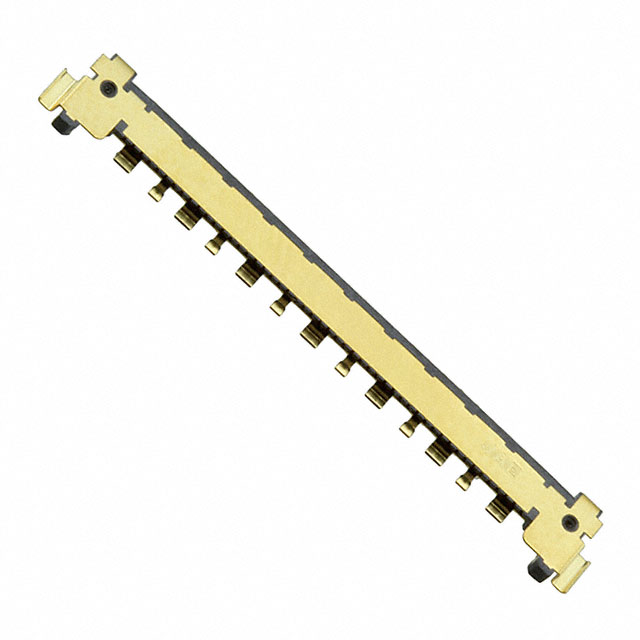

HJ1S050HA1R6000

Obsolete

JAE Electronics

CONN RCPT 50P 0.016 GOLD SMD R/A

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 50P 0.016 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Insulation Material	Style	Insulation Color	Connector Type	Mounting Type	Number of Rows	Applications	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Voltage Rating	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Post	Contact Type	Number of Positions Loaded	Fastening Type	Contact Material
JAE Electronics HJ1S050HA1R6000	1 A	85 °C	-40 °C	Shielded Solder Retention	Solder	Plastic Halogen Free	Board to Cable/Wire	Black	Receptacle	Surface Mount Right Angle	1	General Purpose	0.016 in	0.4 mm	Gold	100 V	0.9 mm	0.035 in	50	Gold	Outer Shroud Contact	All	Friction Lock	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold

Technical documentation and resources

No documents available
