T4162114005-004
ActiveTE Connectivity AMP Connectors

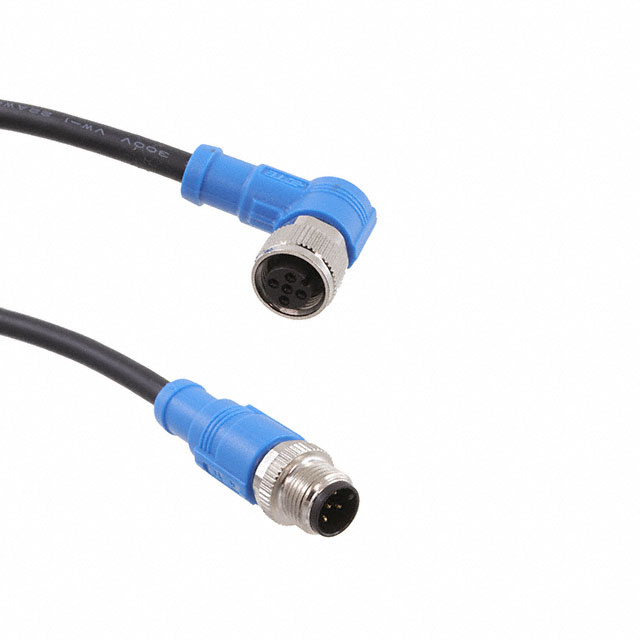

CBL 5POS RCPT TO PLUG RA 9.84'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4162114005-004
ActiveTE Connectivity AMP Connectors
CBL 5POS RCPT TO PLUG RA 9.84'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4162114005-004 | T41621 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 5 - 8 positions |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Number of Positions Loaded | - | 4 |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 5 - 8 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Number of Positions Loaded | - | 4 positions |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug, Right Angle | Plug, Right Angle, Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 9.84 ft | 1.64 - 23 ft |
| Length [x] | 3 m | 1 - 500 mm |
| Shielding | Shielded | Unshielded, Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 38.88 | |
| 10 | $ 33.04 | |||
| 25 | $ 30.97 | |||
| 50 | $ 29.50 | |||
| 100 | $ 28.09 | |||
| 250 | $ 26.33 | |||
T41621 Series
CBL 8POS RCPT TO PLUG RA 1.64'
| Part | 2nd Connector Gender | Color | 2nd Connector Mounting Type | 1st Connector Number of Positions | 2nd Connector Type | 1st Connector Orientation | 1st Connector Mounting Type | Length [x] | Length [x] | 1st Connector Type | Usage | Assembly Configuration | 1st Connector Gender | Shielding | 2nd Connector Shell Size - Insert | Ingress Protection | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | Cable Material | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | Cable Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4162114008-001 | Female Sockets | Black | Free Hanging (In-Line) | 8 positions | Plug, Right Angle | A | Free Hanging (In-Line) | 1.64 ft | 500 mm | Receptacle | Industrial Environments | Standard | Male Pins | Unshielded | M12 | IP67 - Dust Tight, Waterproof | 8 | All | Polyvinyl Chloride (PVC) | All | M12 | Round | ||
TE Connectivity AMP Connectors T4162114004-006 | Female Sockets | Black | Free Hanging (In-Line) | 5 | Plug, Right Angle | A | Free Hanging (In-Line) | 23 ' | 7 m | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | M12 | Round | 4 | 4 positions | ||
TE Connectivity AMP Connectors T4162113004-005 | Female Sockets | Black | Free Hanging (In-Line) | 5 | Plug | A | Free Hanging (In-Line) | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | M12 | Round | 4 | 4 positions | ||||
TE Connectivity AMP Connectors T4162123004-001 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug | A | Free Hanging (In-Line) | 1.64 ft | 500 mm | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | M12 | Round | 4 | 4 positions | ||
TE Connectivity AMP Connectors T4162124004-002 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug, Right Angle | A | Free Hanging (In-Line) | 3.28 ft | 1 m | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | M12 | Round | 4 | 4 positions | ||
TE Connectivity AMP Connectors T4162114005-004 | Female Sockets | Black | Free Hanging (In-Line) | 5 | Plug, Right Angle | A | Free Hanging (In-Line) | 9.84 ft | 3 m | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | All | Polyvinyl Chloride (PVC) | All | M12 | Round | ||
TE Connectivity AMP Connectors T4162123004-002 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug | A | Free Hanging (In-Line) | 3.28 ft | 1 m | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | M12 | Round | 4 | 4 positions | ||
TE Connectivity AMP Connectors T4162113005-001 | Female Sockets | Black | Free Hanging (In-Line) | 5 | Plug | A | Free Hanging (In-Line) | 1.64 ft | 500 mm | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | All | Polyvinyl Chloride (PVC) | All | M12 | Round | ||
TE Connectivity AMP Connectors T4162124005-001 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug, Right Angle | A | Free Hanging (In-Line) | 1.64 ft | 500 mm | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | All | Polyurethane (PUR) | All | M12 | Round | ||
TE Connectivity AMP Connectors T4162123005-002 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug | A | Free Hanging (In-Line) | 3.28 ft | 1 m | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | All | Polyurethane (PUR) | All | M12 | Round | ||
TE Connectivity AMP Connectors T4162124005-005 | Female Sockets | Gray | Free Hanging (In-Line) | 5 | Plug, Right Angle | A | Free Hanging (In-Line) | Receptacle | Industrial Environments | Standard | Male Pins | Shielded | M12 | IP67 - Dust Tight, Waterproof | 5 | All | Polyurethane (PUR) | All | M12 | Round |
Description
General part information
T41621 Series
Circular Cable Assembly Shielded 9.84' (3.00m)
Documents
Technical documentation and resources
