Q-2I0480003002M

Active

Amphenol Custom Cable

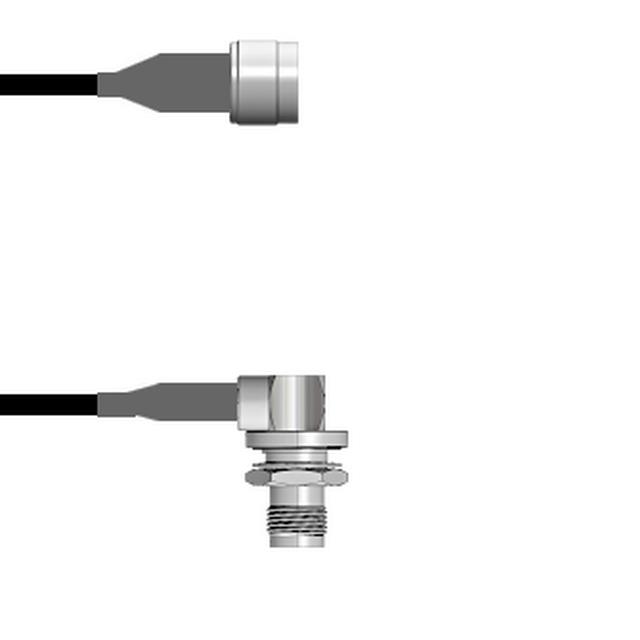

CBL ASSY NTYPE-TNC PLG-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0480003002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLG-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0480003002M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms

Q-2I0480 Series

Part	1st Contact Gender	2nd Connector	Overall Impedance	Color	2nd Contact Gender	Length [x]	Length [x]	Features	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Type	2nd Connector Mounting Feature	Frequency - Max [Max]	Length	Length	Length
Amphenol Custom Cable Q-2I0480003018i	Male	TNC Jack Right Angle	50 Ohms	Black	Female	457.2 mm	457.2 mm	Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz
Amphenol Custom Cable Q-2I0480005084i	Male	TNC Jack Right Angle	50 Ohms	Copper	Female			Shielded	Free Hanging (In-Line)	RG-316	Panel Mount	Bulkhead - Front Side Nut	11 GHz	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2I04800031.5M	Male	TNC Jack Right Angle	50 Ohms	Black	Female			Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-2I0480003001M	Male	TNC Jack Right Angle	50 Ohms	Black	Female			Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2I0480003.75M	Male	TNC Jack Right Angle	50 Ohms	Black	Female			Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz	29.53 "	750 mm
Amphenol Custom Cable Q-2I0480003002M	Male	TNC Jack Right Angle	50 Ohms	Black	Female			Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-2I0480005003M	Male	TNC Jack Right Angle	50 Ohms	Copper	Female			Shielded	Free Hanging (In-Line)	RG-316	Panel Mount	Bulkhead - Front Side Nut	11 GHz	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-2I0480005018i	Male	TNC Jack Right Angle	50 Ohms	Copper	Female	457.2 mm	457.2 mm	Shielded	Free Hanging (In-Line)	RG-316	Panel Mount	Bulkhead - Front Side Nut	11 GHz
Amphenol Custom Cable Q-2I0480003060i	Male	TNC Jack Right Angle	50 Ohms	Black	Female			Shielded	Free Hanging (In-Line)	RG-174	Panel Mount	Bulkhead - Front Side Nut	11 GHz	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-2I0480005001M	Male	TNC Jack Right Angle	50 Ohms	Copper	Female			Shielded	Free Hanging (In-Line)	RG-316	Panel Mount	Bulkhead - Front Side Nut	11 GHz	39.4 in	1 m	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.36
		25	$ 78.66
		50	$ 72.95
		100	$ 68.06
		250	$ 63.99

Description

General part information

Q-2I0480 Series

Cable Assembly Coaxial N-Type to TNC RG-174 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
