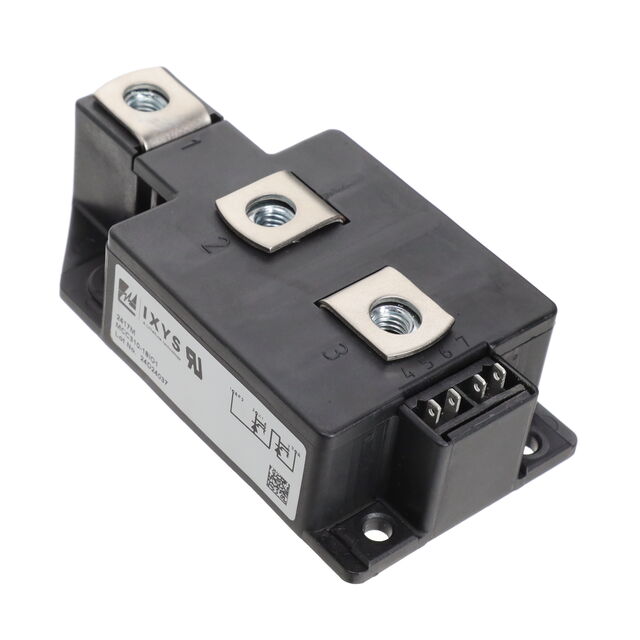

MCC310-18IO1

Active

IXYS

THYRISTOR DIODE MODULE

Search across all available documentation for this part.

Active

IXYS

THYRISTOR DIODE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	MCC310-18IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	9800 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	9200 A
Current - On State (It (AV)) (Max) [Max]	320 A
Current - On State (It (RMS)) (Max) [Max]	500 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Structure	Mounting Type	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]
IXYS MCC310-18IO1	Module	-40 °C	140 °C	1.8 kV	150 mA	9800 A	9200 A	Series Connection - All SCRs	Chassis Mount	150 mA	2 SCRs	320 A	2 V	500 A
IXYS MCC310-08IO1	Module	-40 °C	140 °C	800 V	150 mA	9800 A	9200 A	Series Connection - All SCRs	Chassis Mount	150 mA	2 SCRs	320 A	2 V	500 A
IXYS MCC310-14IO1	Module	-40 °C	140 °C	1.4 kV	150 mA	9800 A	9200 A	Series Connection - All SCRs	Chassis Mount	150 mA	2 SCRs	320 A	2 V	500 A
IXYS MCC310-16IO1	Y2-DCB	-40 °C	140 °C	1.6 kV	150 mA	9800 A	9200 A	Series Connection - All SCRs	Chassis Mount	150 mA	2 SCRs	320 A	2 V	500 A
