M1UXK-4036R

Active

IDC CABLE - MKS40K/MC40M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M1UXK-4036R

Active

IDC CABLE - MKS40K/MC40M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.95
		10	$ 15.55
		25	$ 14.74
		50	$ 14.53
		100	$ 12.82
		250	$ 11.96
		500	$ 11.71

Description

General part information

M1UXK Series

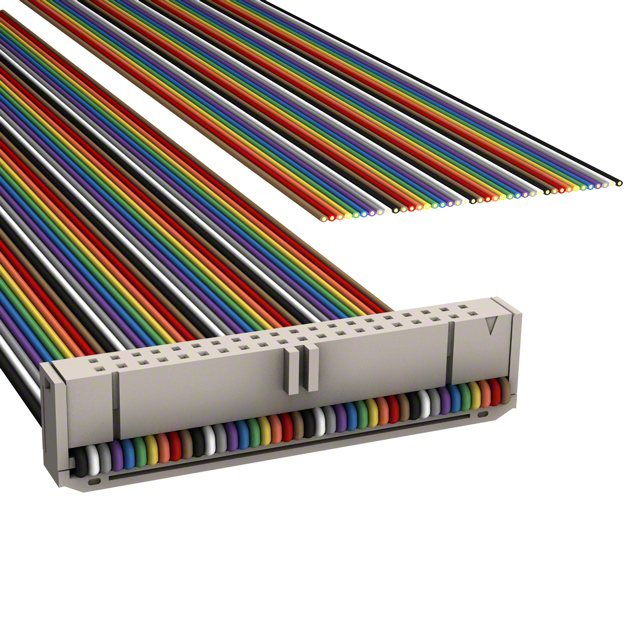

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1UXK-4036R	M1UXK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	40	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1UXK Series

IDC CABLE - MKS20K/MC20M/X

Part	Length [x]	Length [x]	Shielding	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Positions	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows	Number of Positions
3M M1UXK-2036R	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Gold	20	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-1640K	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	Gold		Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2	16
3M M1UXK-2436R	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Gold	24	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-1440K	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	Gold	14	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-3440K	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	Gold	34	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-6040K	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	Gold	60	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-2640K	3.34 ft	1.02 m	Unshielded	0.05 "	1.27 mm	Gold	26	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-6036R	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Gold	60	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-6036J	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Gold	60		IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
3M M1UXK-4036R	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Gold	40	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	Polarizing Key, Strain Relief	0.1 in	2.54 mm	Socket to Cable	2
