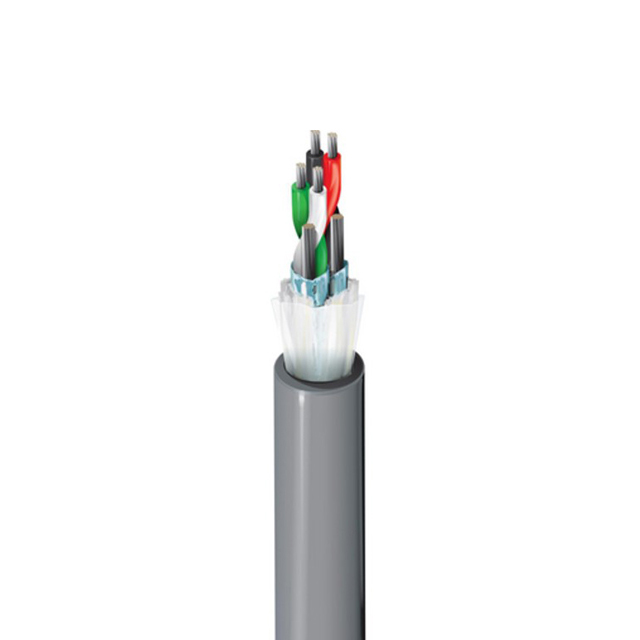

9406 T351000

Active

Belden Inc.

MULTI-PAIR 4CON 22AWG BEI

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 22AWG BEI

Technical Specifications

Parameters and characteristics for this part

Specification	9406 T351000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Beige
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Voltage	Usage	Conductor Insulation	Jacket (Insulation) Material	Wire Gauge	Shield Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Ratings	Shield Type	Length	Length	Jacket Color	Shield Coverage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length [x]	Length [x]
Belden Inc. 9406 T351000	300 V	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	22 AWG	Aluminum	Drain Wire	7	30 AWG	-20 C	80 C	Copper Tinned	UL Style 2464	Foil	1000 ft	304.8 m	Beige	100 %	Multi-Pair	0.838 mm	0.033 in	4
Belden Inc. 9406 T35100	300 V	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	22 AWG	Aluminum	Drain Wire	7	30 AWG	-20 C	80 C	Copper Tinned	UL Style 2464	Foil			Beige	100 %	Multi-Pair	0.838 mm	0.033 in	4	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.68

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Beige 22 AWG Foil 1000.0' (304.8m)
