LCM-S12864GSF

Active

Lumex Opto/Components Inc.

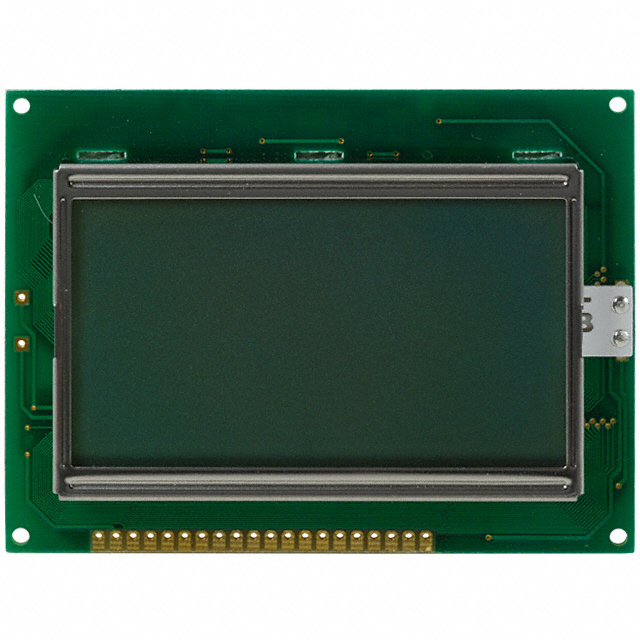

LCD MOD GRAPHIC 128X64 W/LED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 128X64 W/LED

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD GRAPHIC 128X64 W/LED

Part	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Display Type	Interface	Dot Size [custom]	Dot Size [custom]	Viewing Area [x]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Background Color	Display Mode	Backlight
Lumex Opto/Components Inc. LCM-S12864GSF	64	128	Gray	STN - Super-Twisted Nematic	Parallel, 8-Bit	0.48 mm	0.48 mm	72 mm	40 mm	0.52 mm	0.52 mm	Green	Transflective
Lumex Opto/Components Inc. LCM-S12864GSR	64	128		STN - Super-Twisted Nematic	Parallel, 8-Bit	0.48 mm	0.48 mm	72 mm	40 mm	0.52 mm	0.52 mm		Reflective	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	135	$ 32.79

General part information

Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64
