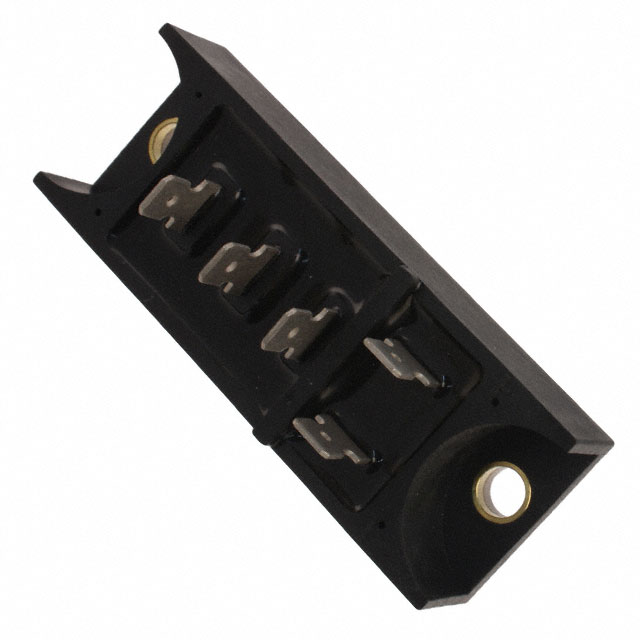

ME701203

Obsolete

Powerex Inc.

BRIDGE RECT 3P 1.2KV 30A MODULE

Search across all available documentation for this part.

Obsolete

Powerex Inc.

BRIDGE RECT 3P 1.2KV 30A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	ME701203

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	2 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.25 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Supplier Device Package	Diode Type	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - Peak Reverse (Max) [Max]
Powerex Inc. ME701603	-40 °C	125 ¯C	30 A	Module	Three Phase	Module	Chassis Mount	2 mA	1.6 kV	1.25 V	Standard
Powerex Inc. ME701203	-40 °C	150 °C	30 A	Module	Three Phase	Module	Chassis Mount	2 mA		1.25 V	Standard	1.2 kV
Powerex Inc. ME701602	-40 °C	150 °C		Module	Three Phase	Module	Chassis Mount	2 mA	1.6 kV	1.25 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Chassis Mount Module
