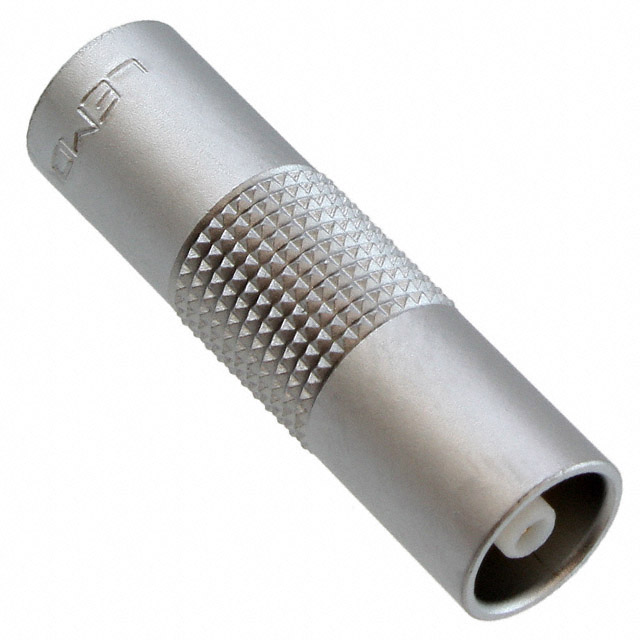

RMA.00.250.CTM
ActiveLEMO
CONN ADAPT JACK-JACK NIM-CAMAC
Deep-Dive with AI
Search across all available documentation for this part.
RMA.00.250.CTM
ActiveLEMO
CONN ADAPT JACK-JACK NIM-CAMAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RMA.00.250.CTM | RMA.00.250 Series |
|---|---|---|
| Adapter Series | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 |
| Adapter Type | Jack to Jack | Jack to Jack |
| Body Finish | Chrome | Nickel, Chrome |
| Body Material | Brass | Brass |
| Center Contact Material | Bronze | Bronze |
| Center Contact Plating | Gold | Gold |
| Center Gender | Female to Female | Female to Female |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | NIM-CAMAC CD/N 549 Jack, Female Socket | NIM-CAMAC CD/N 549 Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Style | Straight | Straight |
RMA.00.250 Series
CONN ADAPT JACK-JACK NIM-CAMAC
| Part | Adapter Series | Dielectric Material | Center Contact Plating | Center Gender | Style | Convert From (Adapter End) | Center Contact Material | Body Material | Impedance | Ingress Protection | Fastening Type | Mounting Type | Adapter Type | Body Finish | Conversion Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO RMA.00.250.NTM | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | Polytetrafluoroethylene (PTFE) | Gold | Female to Female | Straight | NIM-CAMAC CD/N 549 Jack, Female Socket | Bronze | Brass | 50 Ohms | IP50 | Push-Pull | Free Hanging (In-Line) | Jack to Jack | Nickel | Same Series | 500 |
LEMO RMA.00.250.CTM | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | Polytetrafluoroethylene (PTFE) | Gold | Female to Female | Straight | NIM-CAMAC CD/N 549 Jack, Female Socket | Bronze | Brass | 50 Ohms | IP50 | Push-Pull | Free Hanging (In-Line) | Jack to Jack | Chrome | Same Series | 500 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.48 | |
| 10 | $ 19.68 | |||
| 25 | $ 18.83 | |||
| 50 | $ 18.23 | |||
| 100 | $ 17.62 | |||
| 250 | $ 16.65 | |||
| 500 | $ 16.16 | |||
Description
General part information
RMA.00.250 Series
Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
