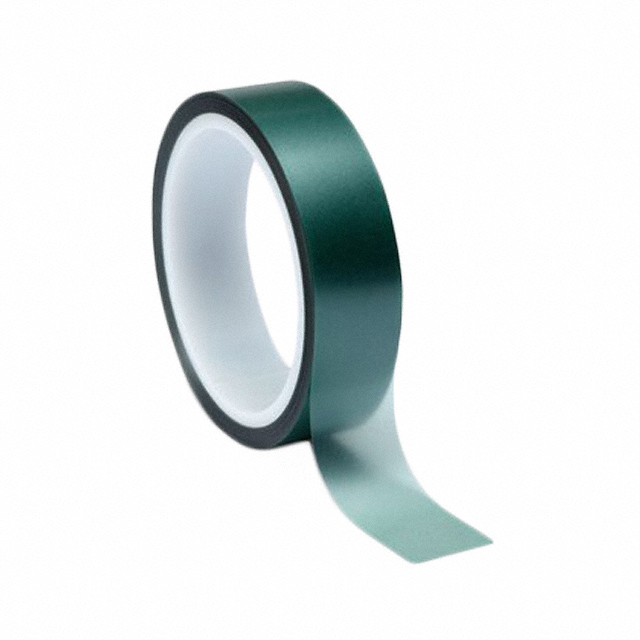

30MIC 3M661X ROLL 1"X50'X3"

Active

3M (TC)

LAPPING FILM DIAMOND 30U 50'X1"

Search across all available documentation for this part.

Active

3M (TC)

LAPPING FILM DIAMOND 30U 50'X1"

Technical Specifications

Parameters and characteristics for this part

Specification	30MIC 3M661X ROLL 1"X50'X3"

Abrasive Material	Diamond
Applications	Fiber Optic Connector Polishing
Color	Green
Length	50 ft
Length	16.7 yds
Length	15.2 m
Micron Size	30 µ
Type	Lapping Film
Width [x]	25.4 mm
Width [x]	1 in

Part	Applications	Abrasive Material	Type	Micron Size	Diameter [diameter]	Diameter [diameter]	Color	Length	Length	Length	Width [x]	Width [x]
3M (TC) 6MIC 3M661X DISC 12"	Fiber Optic Connector Polishing	Diamond	Lapping Film	6 µ	12 in	304.8 mm	Brown
3M (TC) 6MIC 3M661X ROLL .25"X150'X3"	Fiber Optic Connector Polishing	Diamond	Lapping Film	6 µ			Brown	50 yds	150 ft	45.7 m	0.25 in	6.35 mm
3M (TC) 30MIC 3M661X DLF 3MIL 6X6 IN	Fiber Optic Connector Polishing	Diamond	Lapping Film	30 µ			Green		6 in	152.4 mm	6 in	152.4 mm
3M (TC) 1.5MIC 3M661X DLF 3MIL 5 IN	Fiber Optic Connector Polishing	Diamond	Lapping Film	1.5 µ	5 "	127 mm	Green
3M (TC) 3MIC 3M661X DISC 4.25"	Fiber Optic Connector Polishing	Diamond	Lapping Film	3 µ	4.25 in	107.95 mm	Pink
3M (TC) .1MIC 3M661X DLF 3MIL 4 IN	Fiber Optic Connector Polishing	Diamond	Lapping Film	0.1 µ	4 in	101.6 mm	Green
3M (TC) 6MIC 3M661X ROLL 1"X50'X1"	Fiber Optic Connector Polishing	Diamond	Lapping Film	6 µ			Brown	16.7 yds	50 ft	15.2 m	1 in	25.4 mm
3M (TC) 9MIC 3M661X ROLL 3"X50'X3"	Fiber Optic Connector Polishing	Diamond	Lapping Film	9 µ			Blue	16.7 yds	50 ft	15.2 m	3 in	76.2 mm
3M (TC) .1MIC 3M661X DLF 3MIL 5 IN	Fiber Optic Connector Polishing	Diamond	Lapping Film	0.1 µ	5 "	127 mm	Green
3M (TC) 30MIC 3M661X ROLL 1"X50'X3"	Fiber Optic Connector Polishing	Diamond	Lapping Film	30 µ			Green	16.7 yds	50 ft	15.2 m	1 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 440.13

General part information

Lapping Film Diamond 30µ 1.00" (25.40mm) X 50' (15.2m) 16.7 yds Dia
