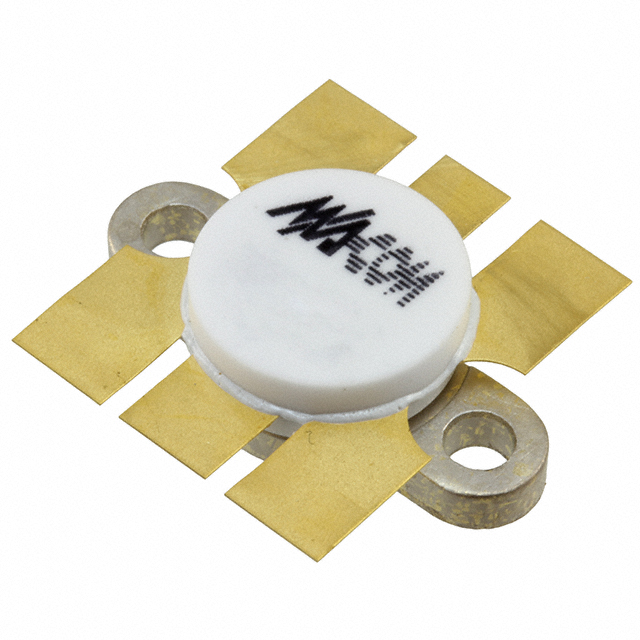

MRF173CQ
ActiveMACOM Technology Solutions
RF MOSFET 28V 316-01
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRF173CQ
ActiveMACOM Technology Solutions
RF MOSFET 28V 316-01
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRF173CQ |
|---|---|
| Configuration | N-Channel |
| Current - Test | 50 mA |
| Current Rating (Amps) | 9 A |
| Frequency | 150 MHz |
| Gain | 13 dBi |
| Noise Figure | 1.5 dB |
| Package / Case | 316-01 |
| Power - Output | 80 W |
| Supplier Device Package | 316-01, Style 2 |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MRF173 Series
RF Mosfet 28 V 50 mA 150MHz 13dB 80W 316-01, Style 2
Documents
Technical documentation and resources
