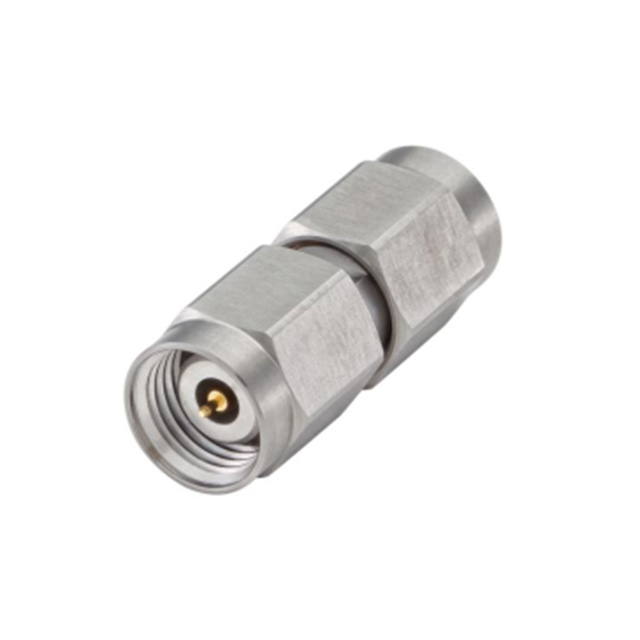

09S121-S00S3

Active

Rosenberger

ADAPT 2.40MM PLUG - 2.40MM PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT 2.40MM PLUG - 2.40MM PLUG

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Specifications	Accessory Type	Type	Body Material	Style	Convert From (Adapter End)	Frequency - Max [Max]	Center Contact Material	Adapter Type	Center Gender	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Impedance	Mating Cycles	Adapter Series	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Shield Termination	Housing Color	Voltage Rating	Connector Type	Connector Style	Connector Style	Connector Style	Number of Ports	Contact Termination	Insertion Loss
Rosenberger 09S121-K20S3	Network Analyzer	2.40 Jack Plug	Calibration Adapter	Specialized
Rosenberger 09S121-S00S3					Stainless Steel	Straight	2.4 mm	50 GHz	Beryllium Copper	Plug to Plug	Male to Male	Polyetheretherketone (PEEK)	85 °C	-40 °C	Free Hanging (In-Line)	50 Ohms	500	RPC-2.40	Same Series	2.4mm (APC-2.4 OS-50) Plug Male Pin	Gold
Rosenberger 09S121-271S3					Stainless Steel			50 GHz	Beryllium Copper			Polyetheretherketone (PEEK)	85 °C	-40 °C	Free Hanging (In-Line)	50 Ohms	500				Gold	Solder	Silver	150 VDC	Male Pin Plug	OS-50	2.4 mm	APC-2.4	1	Solder
Rosenberger 09S121-S20S3	Network Analyzer	2.40 Plug Plug	Calibration Adapter	Specialized
Rosenberger 09S121-K00S3					Stainless Steel	Straight	2.4 mm	50 GHz	Beryllium Copper	Plug to Jack		Polyetheretherketone (PEEK)	85 °C	-40 °C	Free Hanging (In-Line)	50 Ohms	500	RPC-2.40	Same Series	2.4mm (APC-2.4 OS-50) Plug Male Pin	Gold										0.35 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	5	$ 418.05

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms

Technical documentation and resources

No documents available
