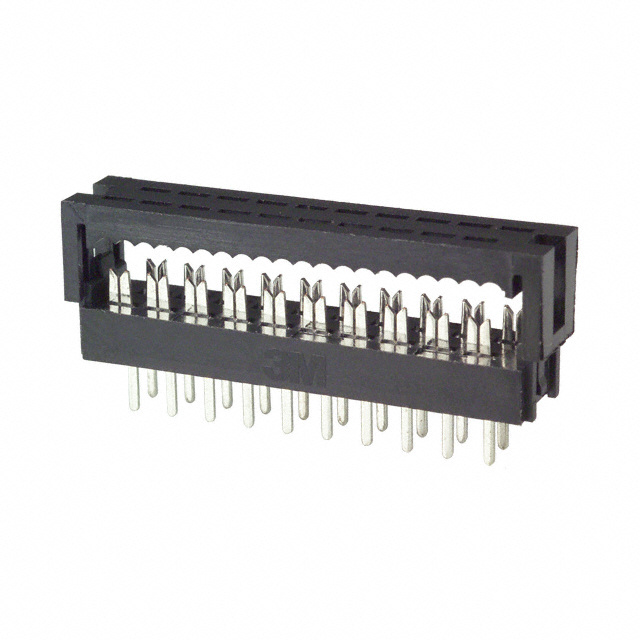

7820-0006PR

Obsolete

3M (TC)

CONN DIP HDR IDC 20P VERT

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN DIP HDR IDC 20P VERT

Technical Specifications

Parameters and characteristics for this part

Specification	7820-0006PR

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Gray
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG, Solid or Stranded, 30 AWG, Solid, 26 AWG, Stranded

Part	Row Spacing [x]	Row Spacing	Board-Side Pitch	Board-Side Pitch	Number of Rows	Contact Finish	Mounting Type	Cable Pitch	Cable Pitch	Features	Cable Termination	Connector Type	Number of Positions Loaded	Wire Gauge	Number of Positions	Color	Contact Finish Thickness
3M (TC) 7820-0006PR	0.1 in	2.54 mm	0.1 in	2.54 mm	2	Gold	Through Hole	1.27 mm	0.05 in	Feed Through	IDC	DIP Header Ribbon Cable	All	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	20	Gray	Flash
3M (TC) 7820-0000T	0.1 in	2.54 mm	0.1 in	2.54 mm	2	Tin	Through Hole	1.27 mm	0.05 in	Feed Through	IDC	DIP Header Ribbon Cable	All	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	20	Gray
3M (TC) 7820-0000PR	0.1 in	2.54 mm	0.1 in	2.54 mm	2	Gold	Through Hole	1.27 mm	0.05 in	Feed Through	IDC	DIP Header Ribbon Cable	All	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	20	Gray	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole

Technical documentation and resources
