DZ4J360K0R
ObsoletePanasonic Industrial Automation Sales
DIODE ZENER ARRAY 36V SMINI4F3-B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DZ4J360K0R
ObsoletePanasonic Industrial Automation Sales
DIODE ZENER ARRAY 36V SMINI4F3-B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ4J360K0R |
|---|---|
| Configuration | 2 Independent |
| Current - Reverse Leakage @ Vr | 50 nA |
| Impedance (Max) (Zzt) [Max] | 250 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

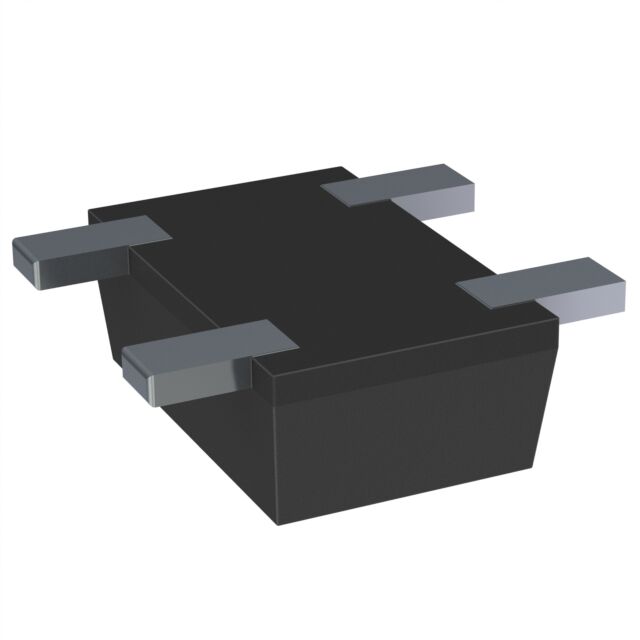

| Package / Case | 4-SMD, Flat Leads |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | SMini4-F3-B |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Zener (Nom) (Vz) | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DZ4J36 Series
Zener Diode Array 2 Independent 36 V 200 mW ±5% SMini4-F3-B
