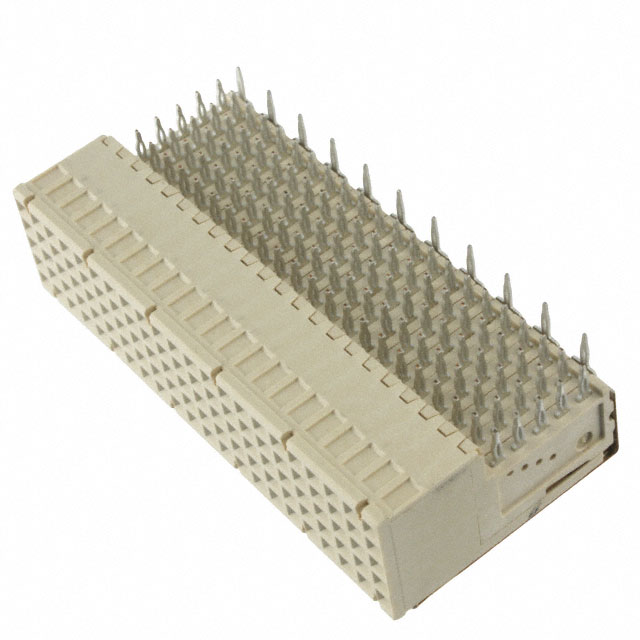

CP2-SB110-G1-FJ
Obsolete3M (TC)
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP2-SB110-G1-FJ
Obsolete3M (TC)
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP2-SB110-G1-FJ |
|---|---|
| Connector Style | B 22 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | CompactPCI |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Upper Shield |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 110 positions |
| Number of Positions Loaded | All |
| Number of Rows | 5 + 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.98 | |
| 10 | $ 5.34 | |||
| 25 | $ 4.82 | |||
| 50 | $ 4.47 | |||
| 100 | $ 4.15 | |||
Description
General part information
CP2-SB11 Series
110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
