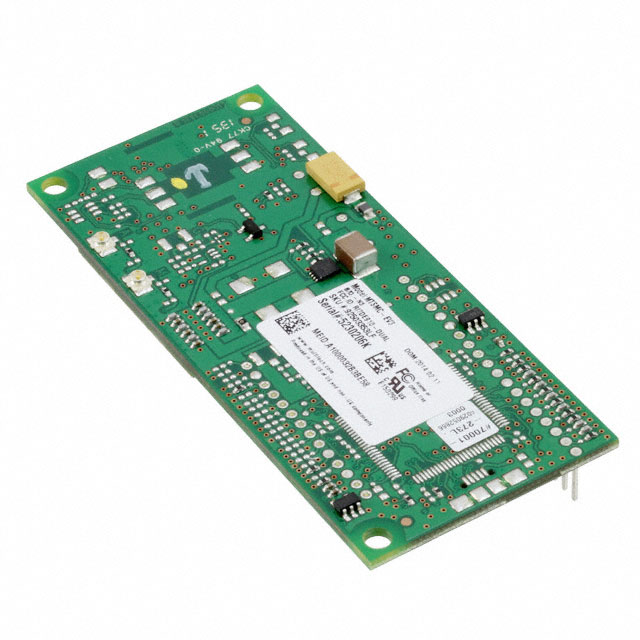

MTSMC-EV3-N3-SP

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Deep-Dive with AI

Search across all available documentation for this part.

MTSMC-EV3-N3-SP

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTSMC-EV3-N3-SP

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	423 mA
Current - Transmitting [Max]	423 mA
Data Rate	921.6 kbps
Frequency	800 MHz, 1900 MHz
Modulation	GSMK
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	32 dBm
Protocol	EV-DO
RF Family/Standard	Cellular
Sensitivity	-110 dBm
Serial Interfaces	UART
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	3.3 V

MTSMC-EV Series

Part	Package / Case	Power - Output	Antenna Type	Protocol	Sensitivity	Modulation	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Data Rate	Current - Transmitting [Max]	Mounting Type	Current - Receiving	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting
Multi-Tech Systems Inc. MTSMC-EV3-N3-SP	Module	32 dBm	Antenna Not Included U.FL	EV-DO	-110 dBm	GSMK	Cellular	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps	423 mA	Through Hole	423 mA	UART	5 V	3.3 V
Multi-Tech Systems Inc. MTSMC-EV2-MI-GP-N3-SP	Module		Antenna Not Included U.FL	EV-DO GPS			Cellular Navigation	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps		Through Hole	225 mA	UART			225 mA
Multi-Tech Systems Inc. MTSMC-EV3-GP-N16	Module	32 dBm	Antenna Not Included U.FL	EV-DO GPS	-110 dBm		Cellular Navigation	85 °C	-40 °C	800 MHz 1900 MHz	3.1 Mbps		Through Hole	423 mA	UART USB	5 V	3.3 V	423 mA
Multi-Tech Systems Inc. MTSMC-EV3-MI-IP-N16	Module	32 dBm	Antenna Not Included U.FL	EV-DO	-110 dBm		Cellular	85 °C	-40 °C	800 MHz 1900 MHz	3.1 Mbps		Through Hole	423 mA	UART USB	5 V	3.3 V	423 mA
Multi-Tech Systems Inc. MTSMC-EV3-U-N2.R1-SP	Module	32 dBm	Antenna Not Included U.FL	EV-DO	-110 dBm	GSMK	Cellular	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps	423 mA	Chassis Mount	423 mA	UART USB	5 V	3.3 V
Multi-Tech Systems Inc. MTSMC-EV2-GP-N2-SP	Module		Antenna Not Included U.FL	EV-DO GPS			Cellular Navigation	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps		Through Hole	225 mA	UART			225 mA
Multi-Tech Systems Inc. MTSMC-EV3-MI-IP-N3-SP	Module	32 dBm	Antenna Not Included U.FL	EV-DO	-110 dBm		Cellular	85 °C	-40 °C	800 MHz 1900 MHz	3.1 Mbps		Through Hole	423 mA	UART USB			423 mA
Multi-Tech Systems Inc. MTSMC-EV3-IP-N16-SP	Module	32 dBm	Antenna Not Included U.FL	EV-DO	-110 dBm		Cellular	85 °C	-40 °C	800 MHz 1900 MHz	3.1 Mbps		Through Hole	423 mA	UART USB	5 V	3.3 V	423 mA
Multi-Tech Systems Inc. MTSMC-EV2-MI-IP-N3-SP	Module		Antenna Not Included U.FL	EV-DO			Cellular	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps		Through Hole	225 mA	UART USB			225 mA
Multi-Tech Systems Inc. MTSMC-EV2-GP-N3-SP	Module		Antenna Not Included U.FL	EV-DO GPS			Cellular Navigation	85 °C	-40 °C	800 MHz 1900 MHz	921.6 kbps		Through Hole	225 mA	UART			225 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MTSMC-EV Series

Cellular EV-DO Transceiver Module 800MHz, 1.9GHz Antenna Not Included, U.FL Through Hole
