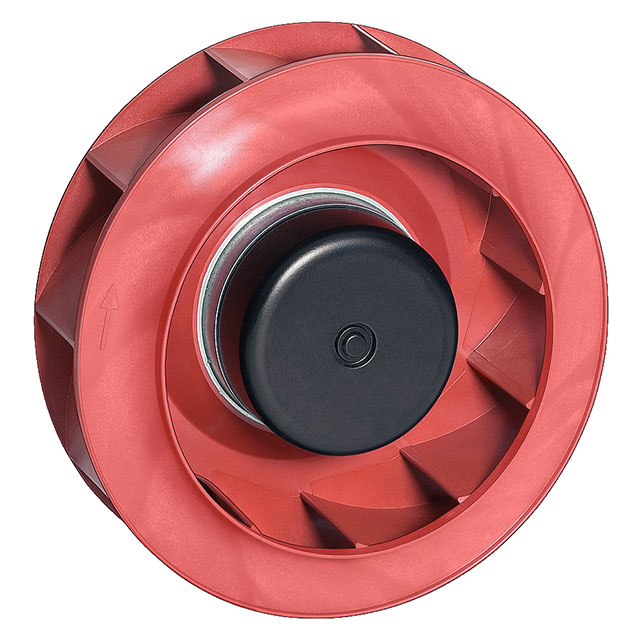

R1G220-AB35-52

Active

ebm-papst Inc.

FAN IMP MTRZD 220X71MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 220X71MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	R1G220-AB35-52

Air Flow	17.39 m³/min
Air Flow	620.9 CFM
Approval Agency	CSA, UL
Bearing Type	Ball
Current Rating (Amps)	5 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Polyamide (PA), Nylon
Noise	76 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	106 W
RPM	3150 RPM
Size / Dimension	Round
Size / Dimension [diameter]	220 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Weight	1.4 kg
Weight	3.1 lbs
Width [x]	71 mm

Part	Width [x]	Noise	Voltage - Rated	Termination	Bearing Type	Approval Agency	Current Rating (Amps)	Air Flow	Air Flow	Features	Fan Type	Weight	Weight	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	RPM	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade
ebm-papst Inc. R1G220-AB35-52	71 mm	76 dB(A)	24 VDC	4 Wire Leads	Ball	CSA UL	5 A	17.39 m³/min	620.9 CFM	PWM Control Speed Sensor (Tach)	Motorized Impellers	1.4 kg	3.1 lbs	106 W	16 VDC	28 VDC	3150 RPM	Round	220 mm	-25 °C	60 °C	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 24VDC Round - 220mm Dia Ball 620.9 CFM (17.39mł/min) 4 Wire Leads
