8741 0601000

Active

Belden Inc.

MULTI-PAIR 4CON 22AWG CHRM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 22AWG CHRM

Technical Specifications

Parameters and characteristics for this part

Specification	8741 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Cable Type	Conductor Strand	Ratings	Wire Gauge	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket Color
Belden Inc. 8741 0601000	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	80 C	Audio Control Instrumentation	Multi-Pair	Solid	UL Style 2576	22 AWG	1000 ft	304.8 m	5.84 mm	0.23 in	4	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.66

General part information

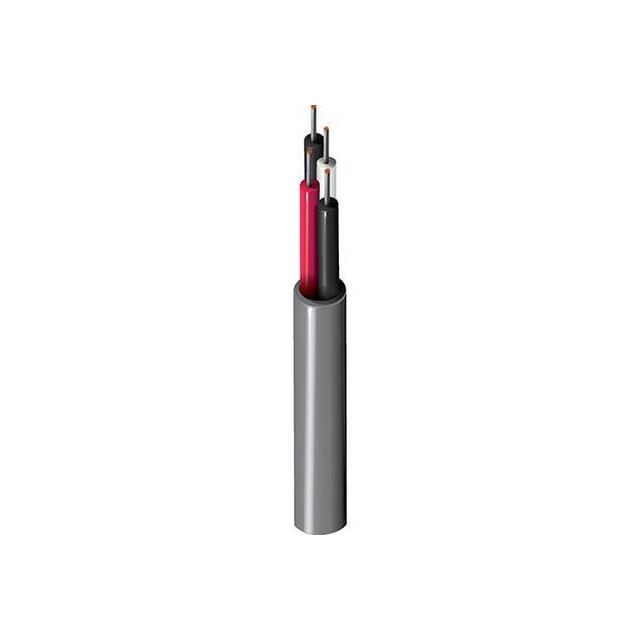

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG 1000.0' (304.8m)
