TSSH-115-01-L-D - TSSH-115-01-L-D

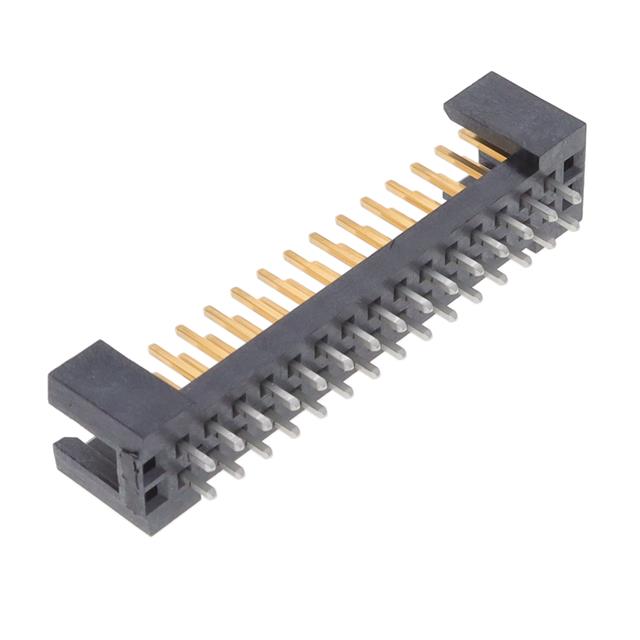

TSSH-115-01-L-D

Active
Samtec Inc.

.100" END SHROUDED TERMINAL STRI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSSH-105-01-L-D Datasheet 02Datasheet+1
TSSH-115-01-L-D - TSSH-115-01-L-D

TSSH-115-01-L-D

Active
Samtec Inc.

.100" END SHROUDED TERMINAL STRI

Deep-Dive with AI

DocumentsTSSH-105-01-L-D Datasheet 02Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTSSH-115-01-L-D
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Mating6.1 mm
Contact Length - Mating [x]0.24 in
Contact Length - Post [x]0.106 in
Contact Length - Post [x]2.69 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesEnd Shrouds
Insulation ColorBlack
Insulation Height [custom]0.35 in
Insulation Height [custom]8.89 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions30
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 3 Wall
StyleBoard to Board, Cable
TerminationSolder

TSSH-115 Series

PartInsulation MaterialOperating Temperature [Max]Operating Temperature [Min]Contact Length - MatingContact Length - Mating [x]Contact TypeContact Finish - PostNumber of PositionsStyleMounting TypeInsulation ColorInsulation Height [custom]Insulation Height [custom]Pitch - MatingPitch - MatingNumber of Positions LoadedConnector TypeFeaturesMaterial Flammability RatingFastening TypeNumber of RowsTerminationContact ShapeShroudingRow Spacing - Mating [x]Row Spacing - Mating [x]Contact MaterialInsulation HeightInsulation HeightContact Finish Thickness - MatingContact Finish Thickness - MatingContact Finish - MatingContact Length - Post [x]Contact Length - Post [x]Contact Length - PostContact Length - Post
Samtec Inc.
TSSH-115-01-T-DV
Liquid Crystal Polymer (LCP)
105 ░C
-55 °C
6.1 mm
0.24 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Black
0.35 in
8.89 mm
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
Samtec Inc.
TSSH-115-01-F-DH
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
5.84 mm
0.23 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Right Angle
Black
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
7.37 mm
0.29 in
3 µin
0.076 µm
Gold
Samtec Inc.
TSSH-115-01-L-DV-LC
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
6.1 mm
0.24 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Black
0.35 in
8.89 mm
0.1 in
2.54 mm
All
Header
Board Lock
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
10 çin
0.25 çm
Gold
Samtec Inc.
TSSH-115-01-L-DH-TR
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
5.84 mm
0.23 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Right Angle
Black
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
7.37 mm
0.29 in
10 çin
0.25 çm
Gold
Samtec Inc.
TSSH-115-01-L-DV-P-TR
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
6.1 mm
0.24 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Black
0.35 in
8.89 mm
0.1 in
2.54 mm
All
Header
End Shrouds
Pick and Place
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
10 çin
0.25 çm
Gold
Samtec Inc.
TSSH-115-01-L-D
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
6.1 mm
0.24 in
Male Pin
Tin
30
Board to Board
Cable
Through Hole
Black
0.35 in
8.89 mm
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 3 Wall
2.54 mm
0.1 in
Phosphor Bronze
10 çin
0.25 çm
Gold
0.106 in
2.69 mm
Samtec Inc.
TSSH-115-01-S-D-RA
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
5.84 mm
0.23 in
Male Pin
Tin
30
Board to Board
Cable
Through Hole
Right Angle
Black
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 3 Wall
2.54 mm
0.1 in
Phosphor Bronze
7.37 mm
0.29 in
30 Áin
0.76 Ám
Gold
0.09 "
2.29 mm
Samtec Inc.
TSSH-115-01-L-DH
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
5.84 mm
0.23 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Right Angle
Black
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
7.37 mm
0.29 in
10 çin
0.25 çm
Gold
Samtec Inc.
TSSH-115-01-T-DH-A-TR
Liquid Crystal Polymer (LCP)
105 ░C
-55 °C
5.84 mm
0.23 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Right Angle
Black
0.1 in
2.54 mm
All
Header
Board Guide
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
7.37 mm
0.29 in
Samtec Inc.
TSSH-115-01-L-DV
Liquid Crystal Polymer (LCP)
125 °C
-55 °C
6.1 mm
0.24 in
Male Pin
Tin
30
Board to Board
Cable
Surface Mount
Black
0.35 in
8.89 mm
0.1 in
2.54 mm
All
Header
End Shrouds
UL94 V-0
Push-Pull
2
Solder
Square
Shrouded - 2 Wall
2.54 mm
0.1 in
Phosphor Bronze
10 çin
0.25 çm
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.22
50$ 3.44
100$ 2.92
500$ 2.60
1000$ 2.42

Description

General part information

TSSH-115 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)
