794584-2

Active

TE Connectivity Raychem Cable Protection

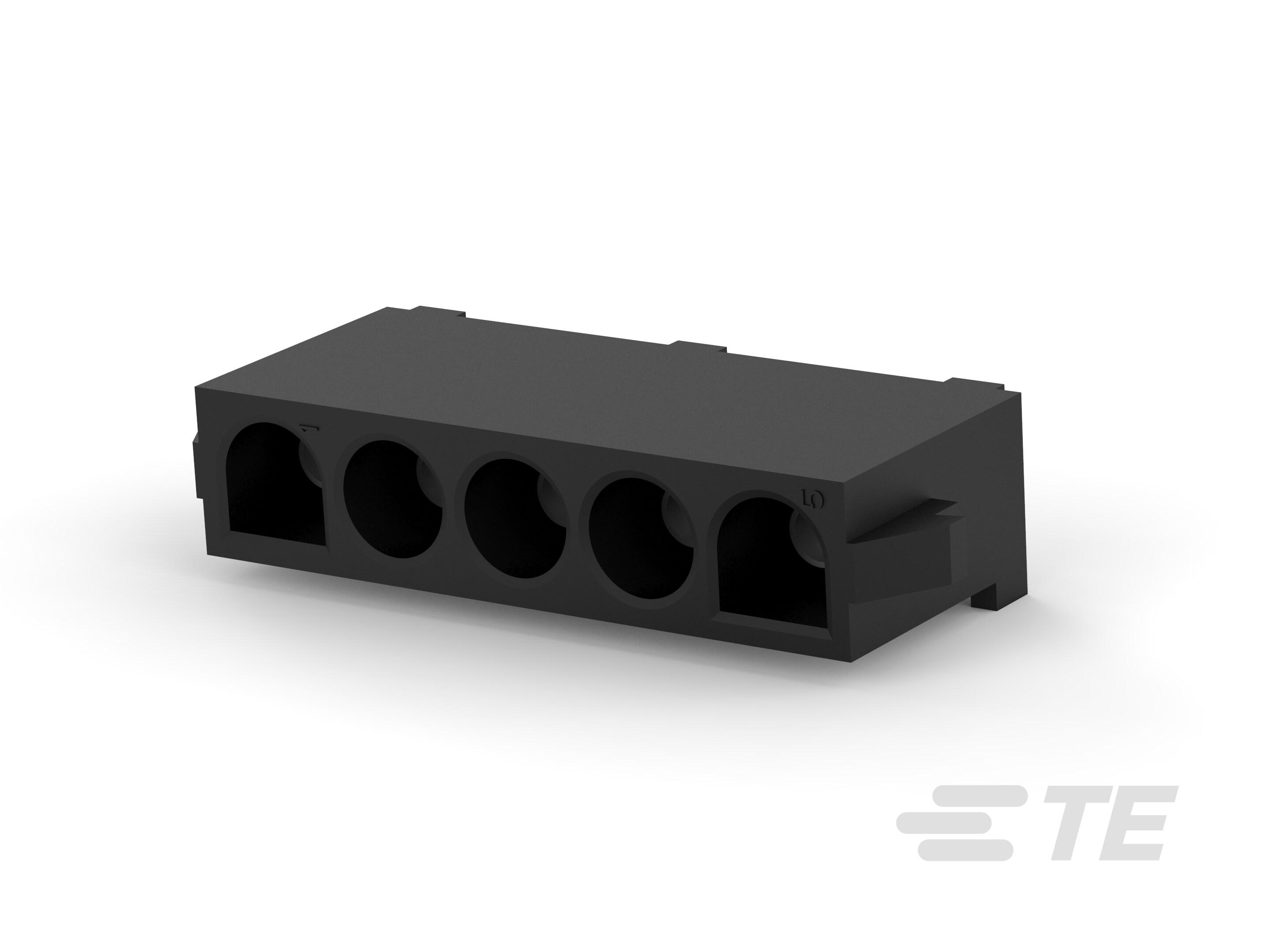

CONN HDR 5POS 0.25 TIN PCB

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN HDR 5POS 0.25 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	794584-2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.58 in
Insulation Height	14.73 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Material	Contact Finish - Post	Contact Material	Fastening Type	Connector Type	Style	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Features	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Contact Shape
TE Connectivity Raychem Cable Protection 794584-2	Nylon Polyamide (PA)	Tin	Phosphor Bronze	Locking Ramp	Header	Board to Cable/Wire	3.94 mm	0.155 "	Female Socket	All	UL94 V-2	0.58 in	14.73 mm	Through Hole	Black	Board Guide	1	6.35 mm	0.25 in	Solder	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2600	$ 1.06

General part information

5 Position Header Connector 0.250" (6.35mm) Through Hole Tin
