RT001823SNH03

Active

Amphenol Sine Systems Corp

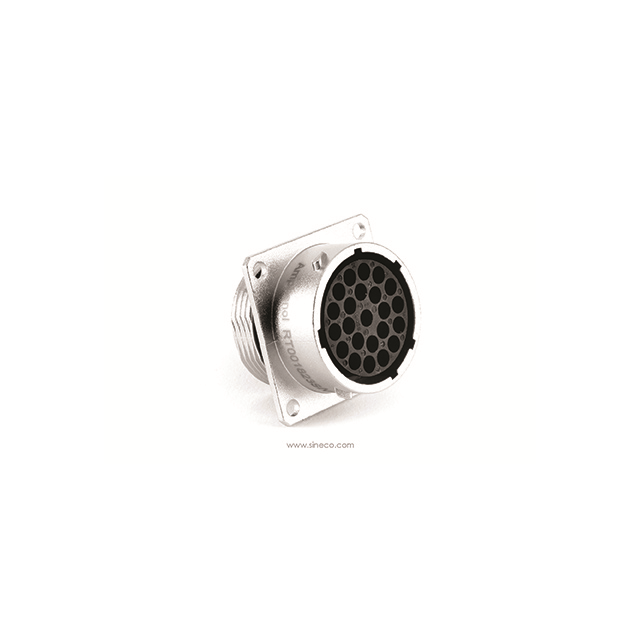

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate RM, RSSM, RM Flyer +1

RT001823SNH03

Active

Amphenol Sine Systems Corp

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

DocumentsDatasheet ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT001823SNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Shielding	Shielded
Type	For Female Sockets

RT001823 Series

Part	Shell Material	Mounting Feature	Type	Note	Shell Finish	Contact Size	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Type	Orientation	Material Flammability Rating	Housing Color	Connector Type	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Features	Contact Shape	Shielding	Insert Material	Color	Contact Material	Current Rating (Amps)	Voltage Rating	Termination	Applications	Contact Finish Thickness - Mating	Primary Material	Contact Finish - Mating	Includes
Amphenol Sine Systems Corp RT001823SNHEC	Zinc Alloy	Flange	For Female Sockets	Contacts Not Included	Nickel	16	Bayonet Lock	23	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	N	UL94 V-0	Silver	Receptacle Housing	18	23	Backshell	Circular	Shielded	Thermoplastic
Amphenol Sine Systems Corp RT001823SKNH03-K	Zinc Die Cast	Flange			Nickel		Bayonet Lock	23	-40 °C	105 ░C	IP67 IP69K		N	UL94 V-0		Receptacle Female Sockets	18	23			Shielded	Polyamide (PA66) Nylon 6/6	Silver	Brass	13 A	250 VAC	Crimp	Aerospace Automation Industrial Telecom Transportation	Flash	Metal	Gold
Amphenol Sine Systems Corp RT001823SNH03	Zinc Alloy	Flange	For Female Sockets	Contacts Not Included	Nickel	16	Bayonet Lock	23	-40 °C	125 °C	IP67 - Dust Tight Waterproof	Crimp	N	UL94 V-0	Silver	Receptacle Housing	18	23		Circular	Shielded	Thermoplastic										1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT001823PNH-K	Zinc Die Cast	Flange			Nickel		Bayonet Lock	23	-40 °C	105 ░C	IP67 - Dust Tight Waterproof		N			Male Pins Receptacle	18	23					Silver		13 A	250 VAC	Crimp		Flash	Metal	Gold
Amphenol Sine Systems Corp RT001823SNH	Zinc Alloy	Flange	For Female Sockets	Contacts Not Included	Nickel	16	Bayonet Lock	23	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	N	UL94 V-0	Silver	Receptacle Housing	18	23		Circular	Shielded	Thermoplastic
Amphenol Sine Systems Corp RT001823PKNH03-K	Zinc Die Cast	Flange			Nickel		Bayonet Lock	23	-40 °C	105 ░C	IP67 IP69K		N	UL94 V-0		Male Pins Receptacle	18	23			Shielded	Polyamide (PA66) Nylon 6/6	Silver	Brass	13 A	250 VAC	Crimp	Aerospace Automation Industrial Telecom Transportation	Flash	Metal	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 12.14

Description

General part information

RT001823 Series

23 Position Circular Connector Receptacle Housing Panel Mount
