2310-6221-TG

Active

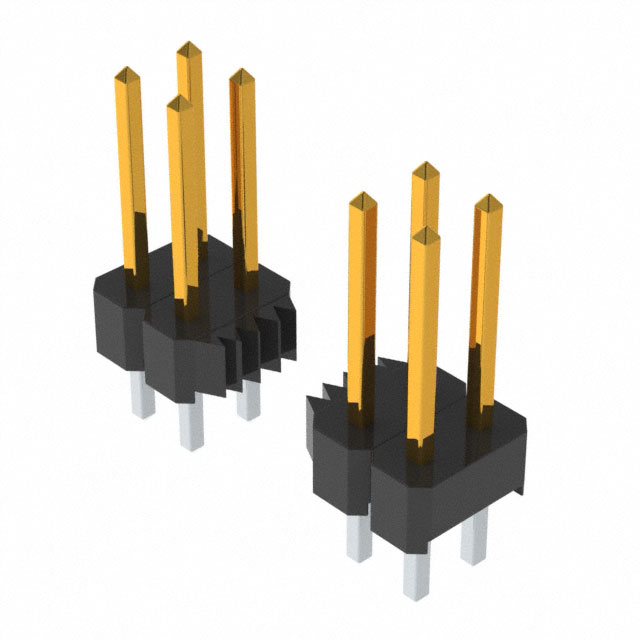

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2310-6221-TG

Active

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.70
		100	$ 0.62
		500	$ 0.51
		1000	$ 0.45
		5000	$ 0.40
		10000	$ 0.38

Description

General part information

2310 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2310-6221-TG	2310 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 - 30 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 - 0.76 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	-	5.84 mm
Contact Length - Mating [x]	0.318 "	0.23 - 0.318 in
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	-	2.79 mm
Contact Length - Post [x]	0.12 in	0.11 - 0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 - 6.14 mm
Insulation Height	-	0.242 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.538 "	0.45 - 0.538 "
Overall Contact Length	13.67 mm	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2310 Series

CONN HEADER R/A 10POS 2.54MM

Part	Connector Type	Style	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Contact Shape	Fastening Type	Number of Positions Loaded	Termination	Insulation Color	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Contact Length - Post
3M 2310-5111-TG	Header	Board to Board, Cable	Gold	Through Hole, Right Angle	-55 °C	105 ░C	10	UL94 V-0	Square	Push-Pull	All	Solder	Black	0.1 in	2.54 mm	Unshrouded	Tin-Lead	0.12 in	3.05 mm	Copper Alloy	0.1 in	2.54 mm	100 µin	2.54 µm	0.23 in	5.84 mm	Male Pin	1	0.25 çm	10 çin	3 A
3M 2310-6221-TG	Header	Board to Board, Cable	Gold	Through Hole	-55 °C	105 ░C	10	UL94 V-0	Square	Push-Pull	All	Solder	Black	0.1 in	2.54 mm	Unshrouded	Tin-Lead	0.12 in	3.05 mm	Copper Alloy	0.1 in	2.54 mm	100 µin	2.54 µm	0.318 "		Male Pin	2	0.25 çm	10 çin	3 A	0.538 "	13.67 mm	8.08 mm	2.54 mm	0.1 in
3M 2310-5121-TG	Header	Board to Board, Cable	Gold	Through Hole, Right Angle	-55 °C	105 ░C	10	UL94 V-0	Square	Push-Pull	All	Solder	Black		6.14 mm	Unshrouded	Tin-Lead	0.11 in		Copper Alloy	0.1 in	2.54 mm	100 µin	2.54 µm	0.23 in	5.84 mm	Male Pin	2	0.25 çm	10 çin	3 A				2.54 mm	0.1 in	0.242 in	2.79 mm
3M 2310-6221-TB	Header	Board to Board, Cable	Gold	Through Hole	-55 °C	105 ░C	10	UL94 V-0	Square	Push-Pull	All	Solder	Black	0.1 in	2.54 mm	Unshrouded	Tin-Lead	0.12 in	3.05 mm	Copper Alloy	0.1 in	2.54 mm	100 µin	2.54 µm	0.318 "		Male Pin	2	0.76 Ám	30 Áin	3 A	0.538 "	13.67 mm	8.08 mm	2.54 mm	0.1 in
3M 2310-6121-TG	Header	Board to Board, Cable	Gold	Through Hole	-55 °C	105 ░C	10	UL94 V-0	Square	Push-Pull	All	Solder	Black	0.1 in	2.54 mm	Unshrouded	Tin-Lead	0.12 in	3.05 mm	Copper Alloy	0.1 in	2.54 mm	100 µin	2.54 µm	0.23 in	5.84 mm	Male Pin	2	0.25 çm	10 çin	3 A	0.45 "	11.43 mm		2.54 mm	0.1 in
