5-103960-1

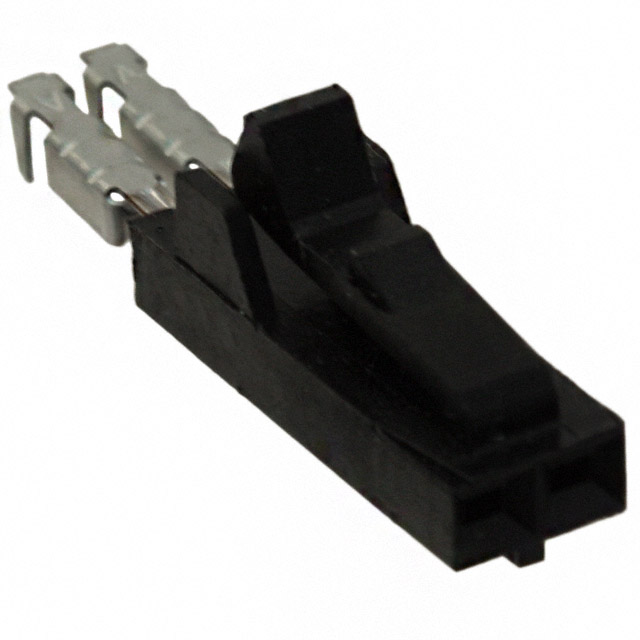

ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 26-30AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103960-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 26-30AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103960-1 | 103960 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 - 12 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 0.83 | |
| 30 | $ 0.79 | |||
| 50 | $ 0.78 | |||
| 110 | $ 0.68 | |||
| 330 | $ 0.66 | |||
| 550 | $ 0.62 | |||
| 1100 | $ 0.54 | |||
| 2530 | $ 0.50 | |||
| 5060 | $ 0.46 | |||
103960 Series
CONN RCPT 4POS IDC 26-30AWG GOLD
| Part | Contact Finish | Connector Type | Fastening Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Number of Rows | Wire Type | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103960-3 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 4 |
TE Connectivity AMP Connectors 103960-1 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 2 |
TE Connectivity AMP Connectors 103960-5 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 6 |
TE Connectivity AMP Connectors 1-103960-1 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 12 |
TE Connectivity AMP Connectors 5-103960-1 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 2 |
TE Connectivity AMP Connectors 103960-2 | Gold | Receptacle | Latch Lock | 26 AWG | 30 AWG | Closed End | 1 | Discrete or Ribbon Cable | Black | Female Socket | 15 µin | 0.38 µm | IDC | Free Hanging (In-Line) | 2.54 mm | 0.1 in |
Description
General part information
103960 Series
2 Position Rectangular Receptacle Connector IDC Gold 26-30 AWG
