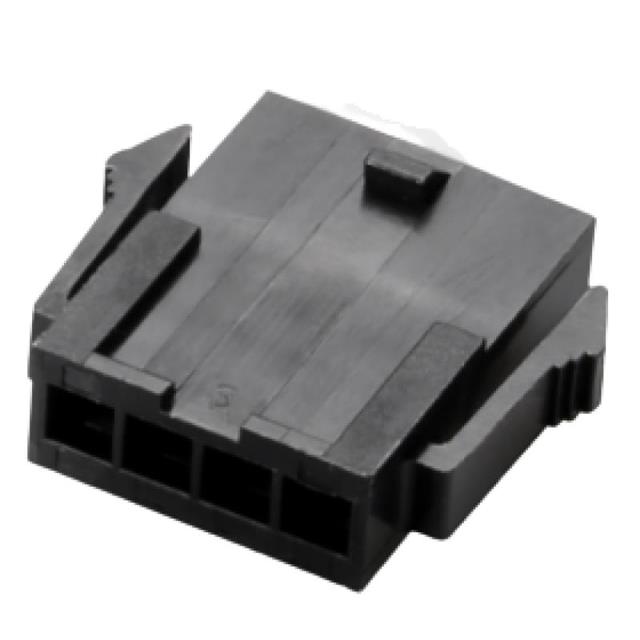

A-WBH-O002EG-09CB01

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 3.00MM,

Search across all available documentation for this part.

Active

Assmann WSW Components

WIRE-TO-BOARD, HOUSING, 3.00MM,

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Insulation Material	Connector Type	Number of Rows	Fastening Type	Contact Termination	Color
Assmann WSW Components A-WBH-O002EG-04CB02	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	4	Polyamide (PA66) Nylon 6/6	Plug	1	Latch Lock	Crimp	Black
Assmann WSW Components A-WBH-O002EG-10CB01	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	10	Polyamide (PA66) Nylon 6/6	Plug	1	Locking Ramp	Crimp	Black
Assmann WSW Components A-WBH-O002EG-09CB01	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	9	Polyamide (PA66) Nylon 6/6	Plug	1	Locking Ramp	Crimp	Black
Assmann WSW Components A-WBH-O002EG-12CB01	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	12	Polyamide (PA66) Nylon 6/6	Plug	1	Locking Ramp	Crimp	Black
Assmann WSW Components A-WBH-O002EG-07CB01	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	7	Polyamide (PA66) Nylon 6/6	Plug	1	Locking Ramp	Crimp	Black
Assmann WSW Components A-WBH-O002EG-06CB02	3 mm	0.118 in	Free Hanging (In-Line)	-25 °C	85 °C	Female Socket	6	Polyamide (PA66) Nylon 6/6	Plug	1	Latch Lock	Crimp	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2000	$ 1.35

General part information

9 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)
