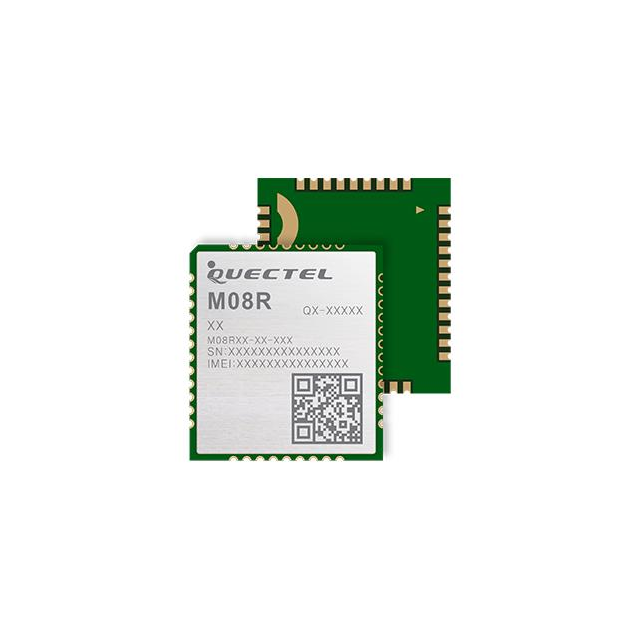

M08RMA-04-STD
ActiveQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M08RMA-04-STD
ActiveQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M08RMA-04-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 1.3 mA |
| Data Rate | 85.6 kbps |
| Frequency | 1900 MHz, 1800 MHz, 900 MHz, 850 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | 42-SMD Module |
| Protocol | GSM, GPRS |
| RF Family/Standard | Navigation |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 4.25 V |
| Voltage - Supply [Min] | 3.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.02 | |
| 10 | $ 9.97 | |||
| 25 | $ 9.19 | |||
| 100 | $ 8.40 | |||
| Digi-Reel® | 1 | $ 11.02 | ||
| 10 | $ 9.97 | |||
| 25 | $ 9.19 | |||
| 100 | $ 8.40 | |||
Description
General part information
M08 Series
Navigation GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
