SMBJ24A-AT/TR13

Active

YAGEO

SMBJ, DO-214AA, 24V, 38.9V, AUTO

Search across all available documentation for this part.

Active

YAGEO

SMBJ, DO-214AA, 24V, 38.9V, AUTO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

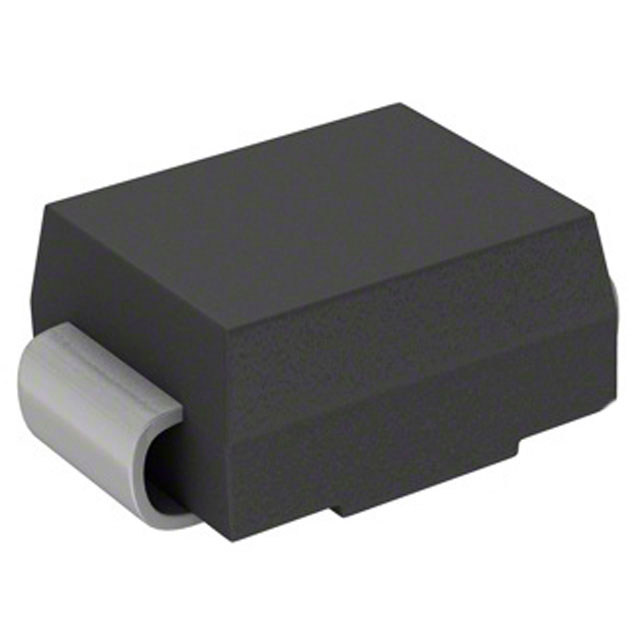

38.9V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AA (SMB)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SMBJ24A-AT/TR13	SMBJ24 Series

Applications	-	General Purpose
Bidirectional Channels	-	1
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Package / Case	SMB, DO-214AA	SMB, DO-214AA
Power - Peak Pulse	600 W	600 W
Power Line Protection	False	False
Qualification	AEC-Q101	AEC-Q101
Supplier Device Package	SMB	SMB
Supplier Device Package	DO-214AA	DO-214AA
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	26.7 V	26.7 V
Voltage - Clamping (Max) @ Ipp [Max]	38.9 V	38.9 V
Voltage - Reverse Standoff (Typ)	24 V	24 V

DIODE TVS SINGLE UNI-DIR 24V 600W 2-PIN SMB T/R

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Package / Case	Mounting Type	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Supplier Device Package	Supplier Device Package	Bidirectional Channels [custom]	Grade	Qualification
YAGEO SMBJ24A/TR7	Zener	150 °C	-65 °C	24 V	600 W	38.9 V	General Purpose	DO-214AA, SMB	Surface Mount	26.7 V	1	SMB	DO-214AA
YAGEO SMBJ24CA/TR13	Zener	150 °C	-55 °C	24 V	600 W	38.9 V	General Purpose	DO-214AA, SMB	Surface Mount	26.7 V		SMB	DO-214AA	1
YAGEO SMBJ24A-AT/TR13	Zener	150 °C	-55 °C	24 V	600 W	38.9 V		DO-214AA, SMB	Surface Mount	26.7 V	1	SMB	DO-214AA		Automotive	AEC-Q101
YAGEO SMBJ24A/TR13	Zener	150 °C	-55 °C	24 V	600 W	38.9 V	General Purpose	DO-214AA, SMB	Surface Mount	26.7 V	1	SMB	DO-214AA
YAGEO SMBJ24CA/TR7	Zener	150 °C	-55 °C	24 V	600 W	38.9 V	General Purpose	DO-214AA, SMB	Surface Mount	26.7 V		SMB	DO-214AA	1
