10-473-A3

Active

Coax Connectors Ltd

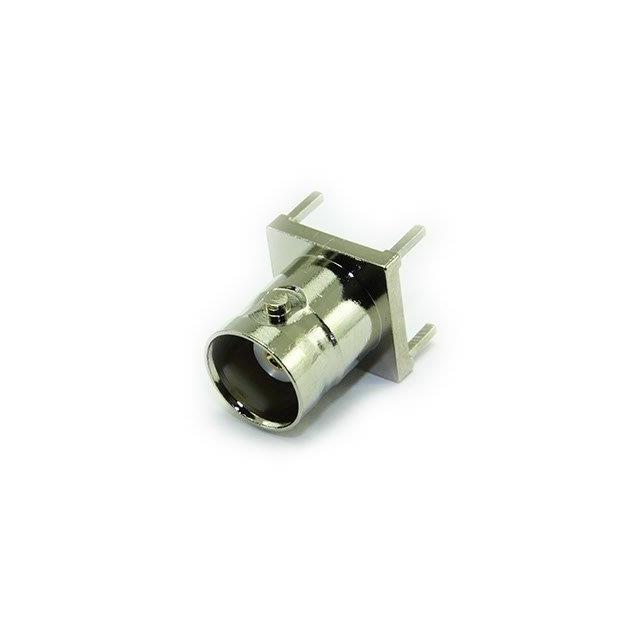

BNC PCB RECEPTACLE,50 OHM,SQUARE

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC PCB RECEPTACLE,50 OHM,SQUARE

Technical Specifications

Parameters and characteristics for this part

Specification	10-473-A3

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

BNC PCB RECEPTACLE,50 OHM,SQUARE

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Contact Termination	Connector Type	Dielectric Material	Shield Termination	Center Contact Material	Center Contact Plating	Fastening Type	Body Material	Housing Color	Connector Style	Body Finish	Ingress Protection	Frequency - Max [Max]	Mating Cycles	Number of Ports
Coax Connectors Ltd 10-473-A3	Through Hole	155 °C	-55 °C	50 Ohms	Solder	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder	Phosphor Bronze	Gold	Bayonet Lock	Brass	Silver	BNC	Nickel	IP64 - Dust Tight, Water Resistant	3 GHz	500	1
