53K504-273N5

Active

Rosenberger

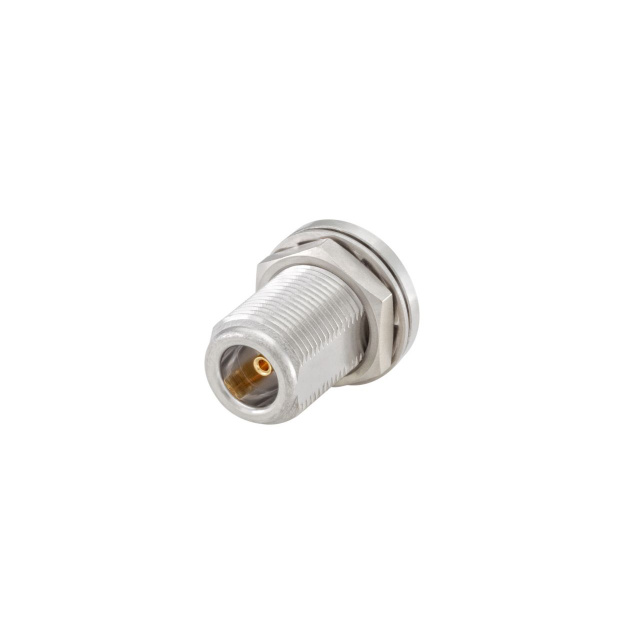

N TYPE BULKHEAD JACK

Search across all available documentation for this part.

Active

Rosenberger

N TYPE BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K504-273N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Shield Termination	Frequency - Max [Max]	Dielectric Material	Cable Group	Cable Group	Mating Cycles	Number of Ports	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Center Contact Plating	Impedance	Connector Type	Contact Termination	Mounting Feature	Housing Color	Connector Style	Body Finish	Voltage Rating
Rosenberger 53K504-273N5	Solder	11 GHz	Polytetrafluoroethylene (PTFE)	0.25 in	RG-401	500	1	Brass	-25 °C	110 °C	Beryllium Copper	Gold	50 Ohms	Female Socket Jack	Solder	Bulkhead - Front Side Nut	Silver	N Type	White Bronze	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 23.23

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
