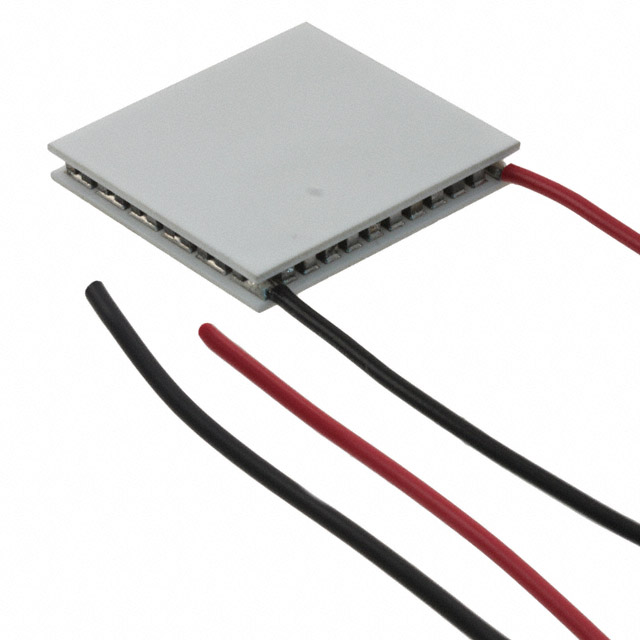

Specification	7950001-601

Current - Max	6 A
Delta Tmax	74 °C
Features	Non-Sealed, Lead Wires
Height	3.91 mm
Maximum Power Dissipation (Qmax)	31 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	1.23 Ohms
Size / Dimension Length	30 mm
Size / Dimension Shape	Square
Size / Dimension Width	30 mm
Voltage - Max	8.6 V

7950001 Series

Part	Operating Temperature	Current - Max	Number of Stages	Maximum Power Dissipation (Qmax)	Delta Tmax	Features	Height	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Resistance	Voltage - Max
Laird Thermal Systems, Inc. 7950001-601	80 °C	6 A	1	31 W	74 °C	Lead Wires Non-Sealed	3.91 mm	30 mm	Square	30 mm	1.23 Ohms	8.6 V
Laird Thermal Systems, Inc. 7950001-602	80 °C	6 A	1	31 W	74 °C	Lead Wires Sealed Silicone RTV	3.91 mm	30 mm	Square	30 mm	1.23 Ohms	8.6 V
