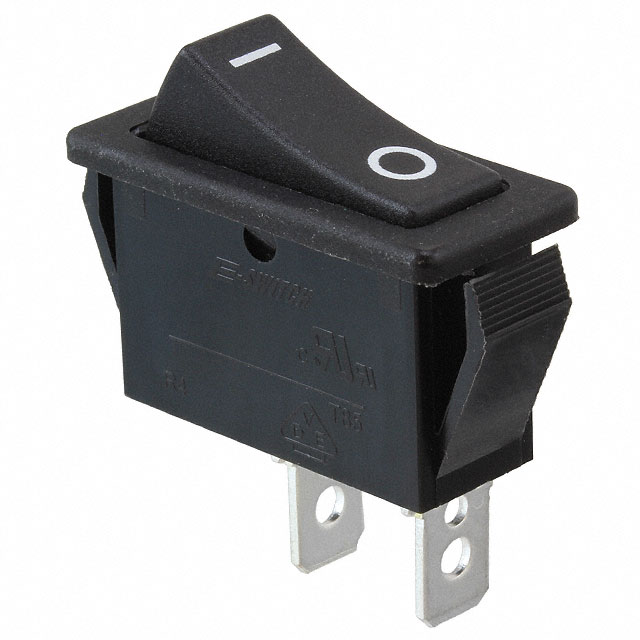

R4FBLKBLKGF0
ActiveE-Switch
SWITCH ROCKER SPST-NO 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R4FBLKBLKGF0
ActiveE-Switch
SWITCH ROCKER SPST-NO 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R4FBLKBLKGF0 |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 11.1 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.77 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 1000 | $ 1.16 | |||
Description
General part information
R4FBLKBL Series
Rocker Switch SPST-NO 20A (AC) 125 V Panel Mount, Snap-In
