6-103080-0
ActiveTE Connectivity AMP Connectors

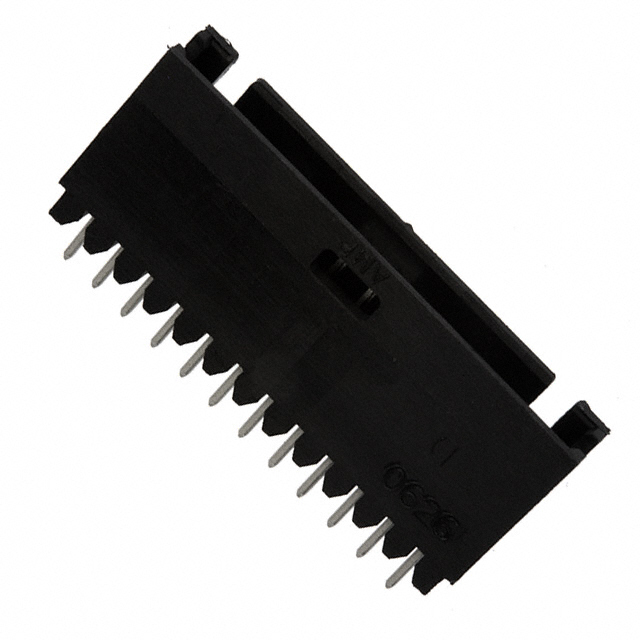

CONN HEADER VERT 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-103080-0
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-103080-0 | 103080 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.549 in | 0.549 in |
| Insulation Height | 13.94 mm | 13.94 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 12 | 4 - 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.589 " | 0.589 " |
| Overall Contact Length | 14.96 mm | 14.96 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1152 | $ 1.85 | |
103080 Series
CONN HEADER VERT 4POS 2.54MM
| Part | Contact Finish - Mating | Material Flammability Rating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Insulation Color | Shrouding | Number of Rows | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Shape | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating [x] | Style | Contact Material | Overall Contact Length | Overall Contact Length | Connector Type | Contact Type | Termination | Insulation Material | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103080-2 | Tin-Lead | UL94 V-0 | 4 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm |
TE Connectivity AMP Connectors 6-103080-2 | UL94 V-0 | 14 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 103080-1 | Tin-Lead | UL94 V-0 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103080-2 | UL94 V-0 | 4 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103080-6 | UL94 V-0 | 8 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 6-103080-1 | UL94 V-0 | 13 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 6-103080-0 | UL94 V-0 | 12 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 3-103080-6 | UL94 V-0 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | ||
TE Connectivity AMP Connectors 1-103080-1 | Tin-Lead | UL94 V-0 | 13 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm |
TE Connectivity AMP Connectors 103080-3 | Tin-Lead | UL94 V-0 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 1-103080-0 | Tin-Lead | UL94 V-0 | 12 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm |
TE Connectivity AMP Connectors 103080-4 | Tin-Lead | UL94 V-0 | 6 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin-Lead | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm |
TE Connectivity AMP Connectors 5-103080-7 | UL94 V-0 | 9 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103080-9 | UL94 V-0 | 11 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103080-8 | UL94 V-0 | 10 | -65 ░C | 105 ░C | Through Hole | Black | Shrouded - 4 Wall | 1 | All | 0.549 in | 13.94 mm | 0.13 in | 3.3 mm | Square | Push-Pull | 2.54 µm | 100 µin | 3 A | Tin | 2.54 çm | 100 çin | 6.1 mm | 0.24 in | Board to Board, Cable | Brass | 0.589 " | 14.96 mm | Header | Male Pin | Solder | Thermoplastic | 0.1 in | 2.54 mm |
Description
General part information
103080 Series
Connector Header Through Hole 12 position 0.100" (2.54mm)
Documents
Technical documentation and resources
