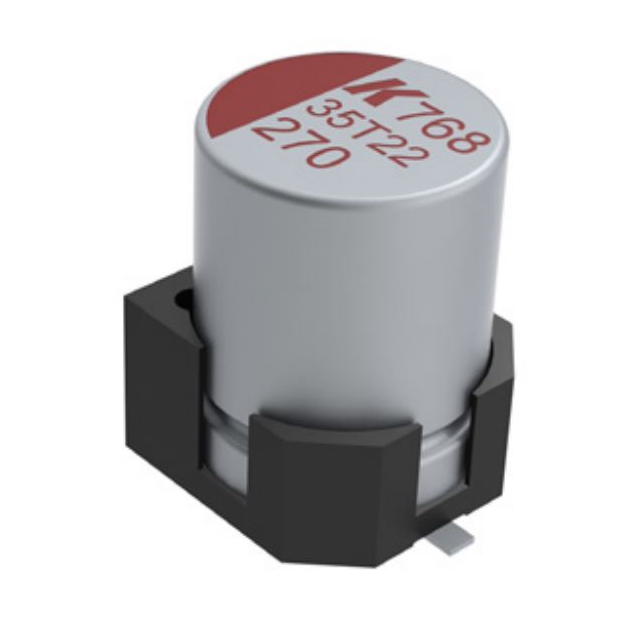

Specification	A768MS277M1GLAV022

Applications	Automotive
Capacitance	270 µF
ESR (Equivalent Series Resistance)	22 mOhm
Features	Anti-Vibration
Height - Seated (Max)	0.52 in
Lifetime	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial, Can - SMD
Ratings	AEC-Q200
Ripple Current	2.2 A, 110 mA
Size / Dimension Diameter	0.394 in
Surface Mount Land Length	0.425 in
Surface Mount Land Width	0.406 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	40 V

A768MS Series

Part	Features	Lifetime	Applications	Capacitance	Height - Seated (Max)	Package / Case	Tolerance	Ripple Current	Mounting Type	Ratings	ESR (Equivalent Series Resistance)	Type	Surface Mount Land Length	Surface Mount Land Width	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Diameter
KEMET A768MS337M1VLAV022	Anti-Vibration	2000 Hrs	Automotive	330 µF	0.52 in	Can - SMD Radial	20 %	2.2 A 110 mA	Surface Mount	AEC-Q200	22 mOhm	Polymer	0.425 in	0.406 in	35 V	125 °C	-55 °C	0.394 in
KEMET A768MS567M1ELAE017		2000 Hrs	General Purpose	560 µF	12.7 mm	Can - SMD Radial	20 %	2.5 A 125 mA	Surface Mount		17 mOhm	Polymer	0.406 in	0.406 in	25 VAC	125 °C	-55 °C	0.394 in
KEMET A768MS687M1DLAS015		2000 Hrs	Automotive	680 µF	12.7 mm	Can - SMD Radial	20 %	2.6 A 130 mA	Surface Mount	AEC-Q200	15 mOhm	Polymer	0.406 in	0.406 in	20 V	125 °C	-55 °C	0.394 in
KEMET A768MS277M1GLAV022	Anti-Vibration	2000 Hrs	Automotive	270 µF	0.52 in	Can - SMD Radial	20 %	2.2 A 110 mA	Surface Mount	AEC-Q200	22 mOhm	Polymer	0.425 in	0.406 in	40 V	125 °C	-55 °C	0.394 in
KEMET A768MS687M1DLAE015		2000 Hrs	General Purpose	680 µF	12.7 mm	Can - SMD Radial	20 %	2.6 A 130 mA	Surface Mount		15 mOhm	Polymer	0.406 in	0.406 in	20 V	125 °C	-55 °C	0.394 in
KEMET A768MS227M1GLAS022		2000 Hrs	Automotive	220 µF	12.7 mm	Can - SMD Radial	20 %	2.2 A 110 mA	Surface Mount	AEC-Q200	22 mOhm	Polymer	0.406 in	0.406 in	40 V	125 °C	-55 °C	0.394 in
KEMET A768MS108M1CLAE015		2000 Hrs	General Purpose	1000 µF	12.7 mm	Can - SMD Radial	20 %	2.7 A 135 mA	Surface Mount		15 mOhm	Polymer	0.406 in	0.406 in	16 V	125 °C	-55 °C	0.394 in
KEMET A768MS227M1GLAV022	Anti-Vibration	2000 Hrs	Automotive	220 µF	0.52 in	Can - SMD Radial	20 %	2.2 A 110 mA	Surface Mount	AEC-Q200	22 mOhm	Polymer	0.425 in	0.406 in	40 V	125 °C	-55 °C	0.394 in
KEMET A768MS566M1KLAE034		2000 Hrs	General Purpose	56 µF	12.7 mm	Can - SMD Radial	20 %	1.8 A 90 mA	Surface Mount		34 mOhm	Polymer	0.406 in	0.406 in	80 Vp-p	125 °C	-55 °C	0.394 in
KEMET A768MS107M1JLAV027	Anti-Vibration	2000 Hrs	Automotive	100 µF	0.52 in	Can - SMD Radial	20 %	2 A 100 mA	Surface Mount	AEC-Q200	27 mOhm	Polymer	0.425 in	0.406 in	63 V	125 °C	-55 °C	0.394 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

A768MS277M1GLAV022 | Datasheet

KEM_A4088_A768.pdf

Datasheet

A768MS277M1GLAV022 Spec
