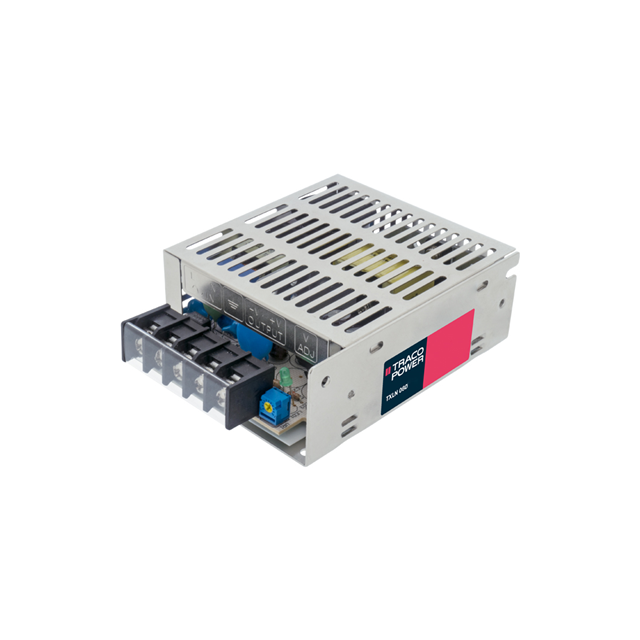

TXLN 060-124

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.5A 60W 5-PIN

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.5A 60W 5-PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXLN 060-124	TXLN 060 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus, CE	CB, cURus, CE
Current - Output 1	2.5 A	2.5 - 10 A
Efficiency	84 %	78 - 84 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	-	50 W
Size / Dimension [x]	3.9 "	3.9 "
Size / Dimension [x]	99 mm	99 mm
Size / Dimension [y]	82 mm	82 mm
Size / Dimension [y]	3.23 "	3.23 "
Size / Dimension [z]	1.38 in	1.38 in
Size / Dimension [z]	35 mm	35 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC	264 - 375 VAC
Voltage - Input [Min]	88 VAC, 125 VDC	88 - 125 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	5 - 24 V

AC/DC CONVERTER 15V 60W

Part	Features	Number of Outputs	Type	Mounting Type	Standard Number	Applications	Voltage - Output 1	Efficiency	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)
Traco Power TXLN 060-115	Adjustable Output, Universal Input	1	Enclosed	Chassis Mount	62368-1	ITE (Commercial)	15 V	83 %	4 A	-20 °C	70 °C	CB, CE, cURus	3000 V	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	264 VAC, 375 VDC	88 VAC, 125 VDC
Traco Power TXLN 060-105	Adjustable Output, Universal Input	1	Enclosed	Chassis Mount	62368-1	ITE (Commercial)	5 V	78 %	10 A	-20 °C	70 °C	CB, CE, cURus	3000 V	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	264 VAC, 375 VDC	88 VAC, 125 VDC	50 W
Traco Power TXLN 060-112	Adjustable Output, Universal Input	1	Enclosed	Chassis Mount	62368-1	ITE (Commercial)	12 V	81 %	5 A	-20 °C	70 °C	CB, CE, cURus	3000 V	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	264 VAC, 375 VDC	88 VAC, 125 VDC
Traco Power TXLN 060-124	Adjustable Output, Universal Input	1	Enclosed	Chassis Mount	62368-1	ITE (Commercial)	24 V	84 %	2.5 A	-20 °C	70 °C	CB, CE, cURus	3000 V	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	264 VAC, 375 VDC	88 VAC, 125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 88 ~ 264 VAC, 125 ~ 375 VDC Input
